Fusion Electronics 3D

Sample	PCB	PCB_3D	Enclosure

All Layers	Traces	Outline	Holes
Mods G-Code mill 2D PCB

0. Download Libraries

• Instruction_FA25 Libraries

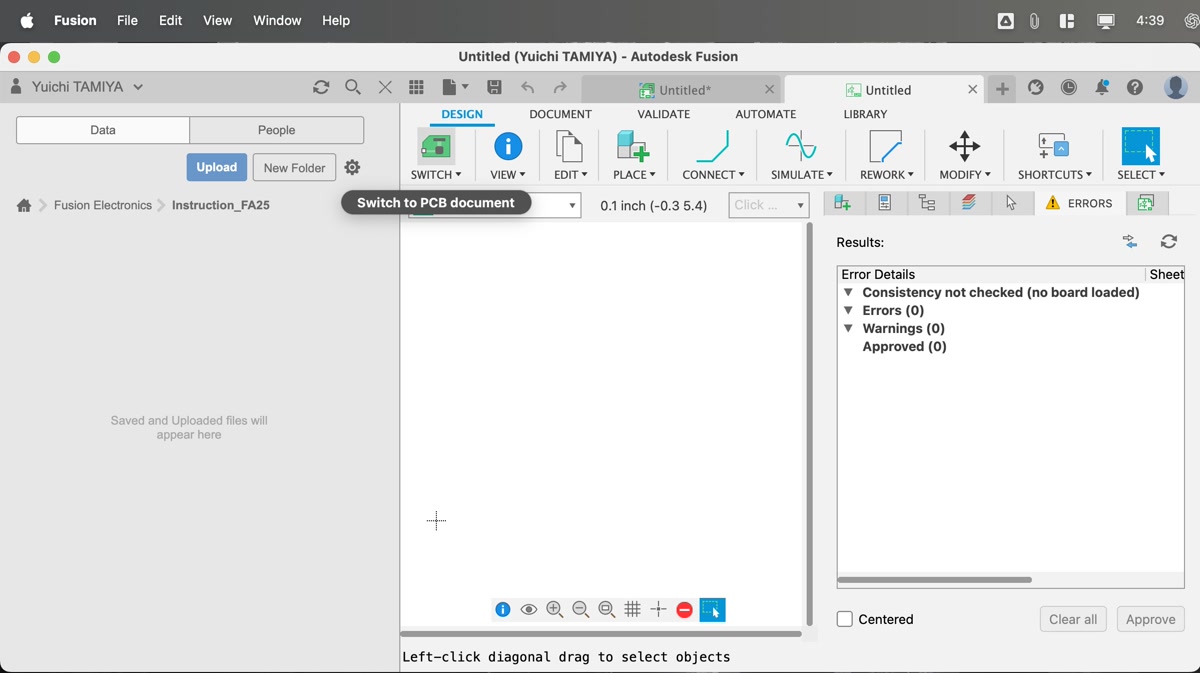

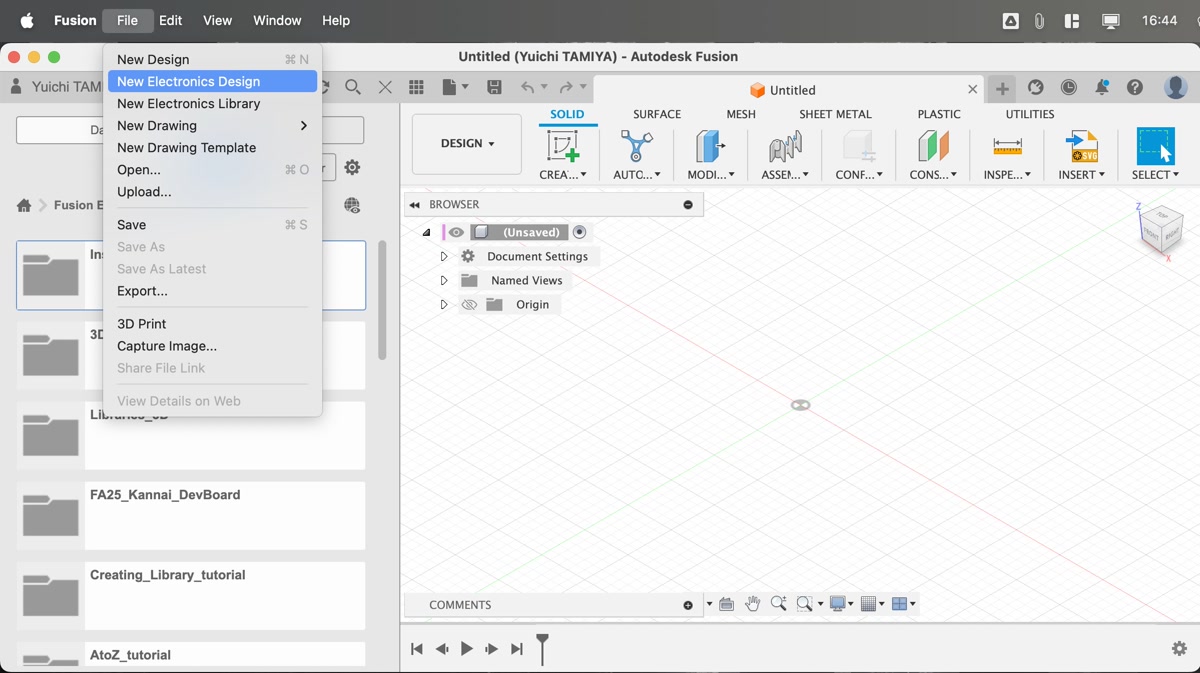

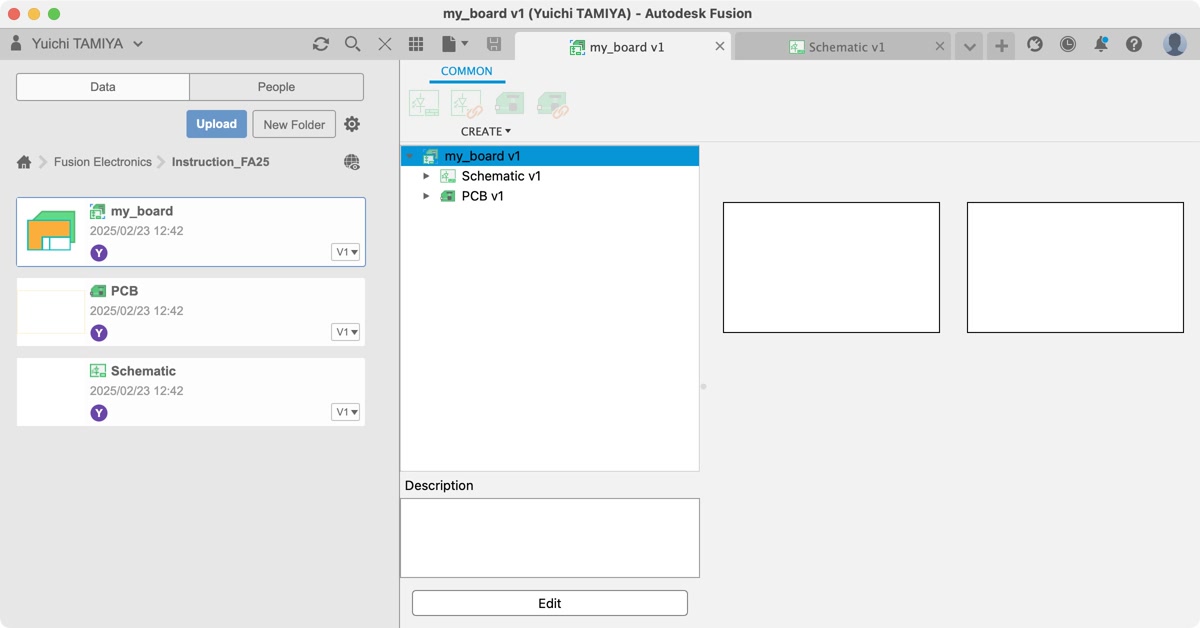

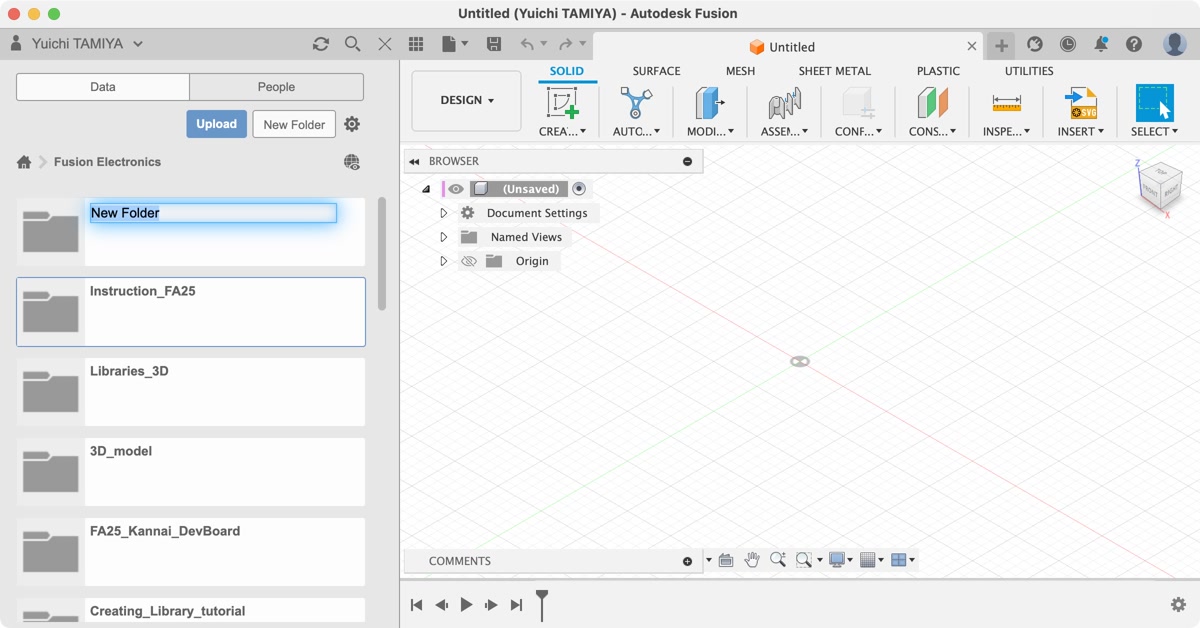

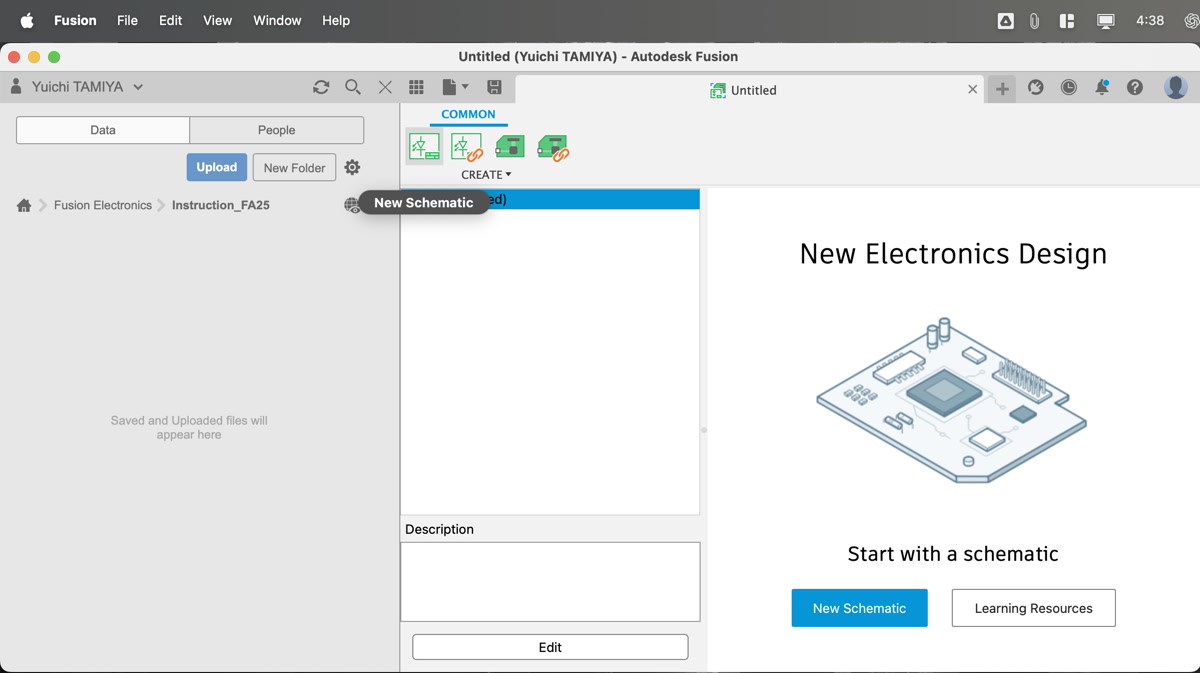

1. Make New Folder and Electronics Design files

New FolderElectronics DesignSchematicPCBSave all in the New Folder

2. Design Schematic

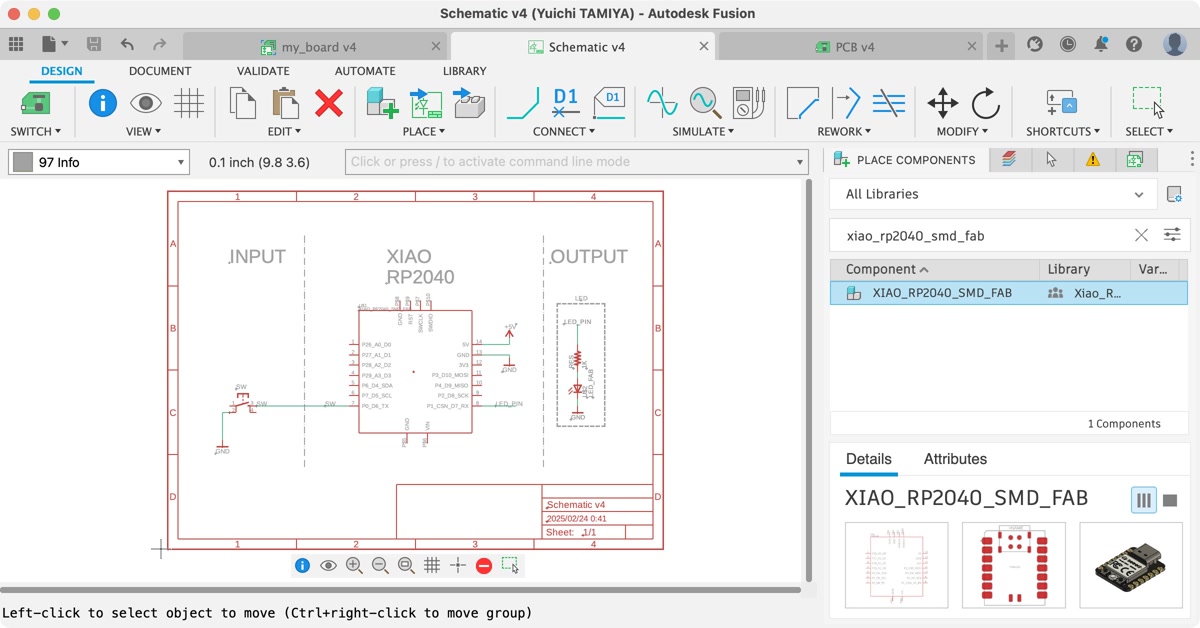

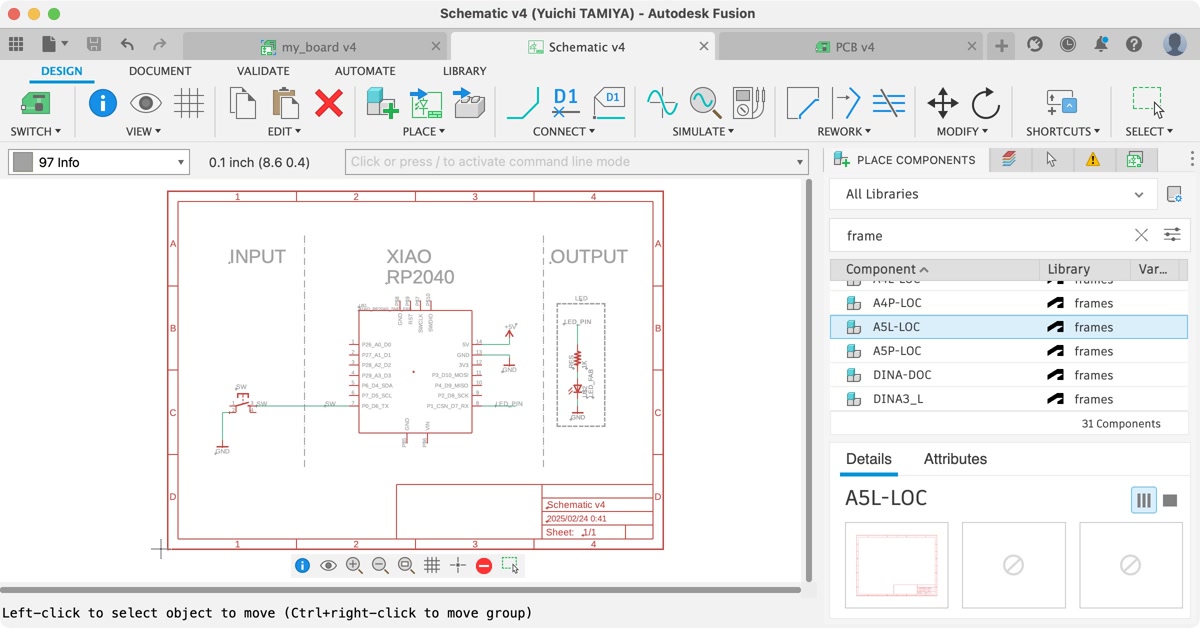

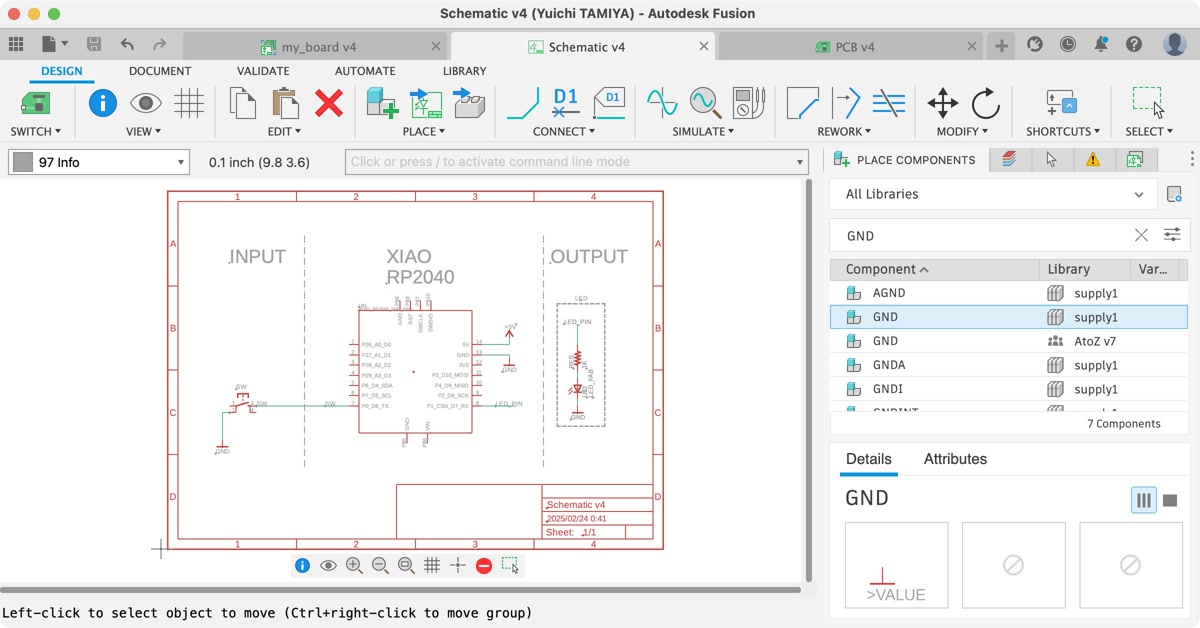

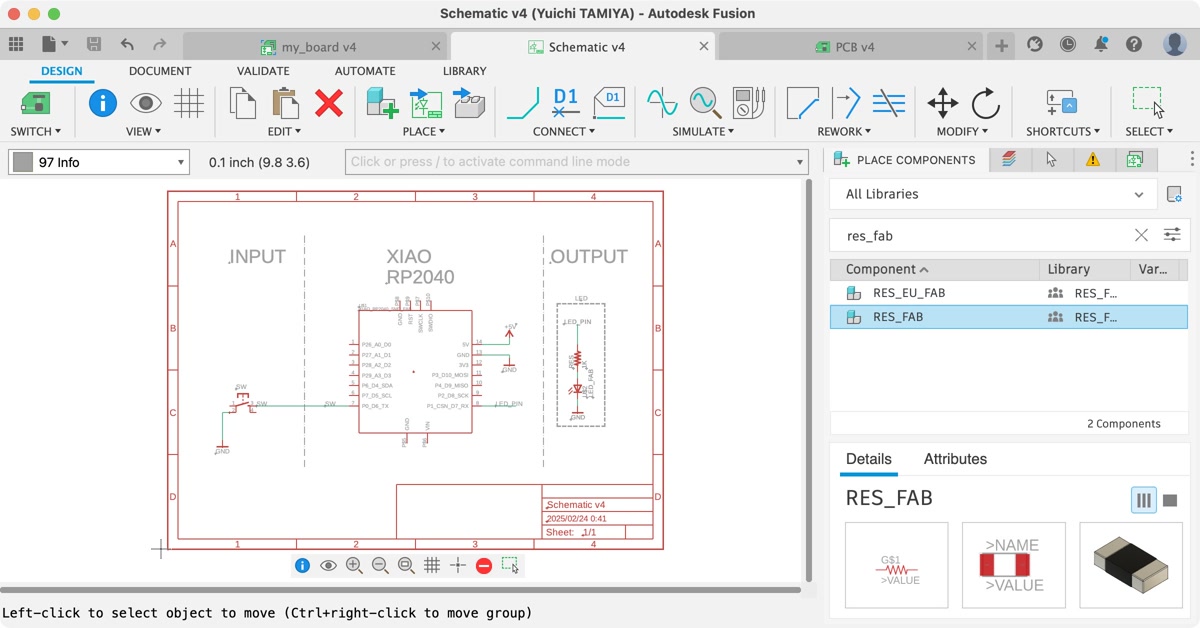

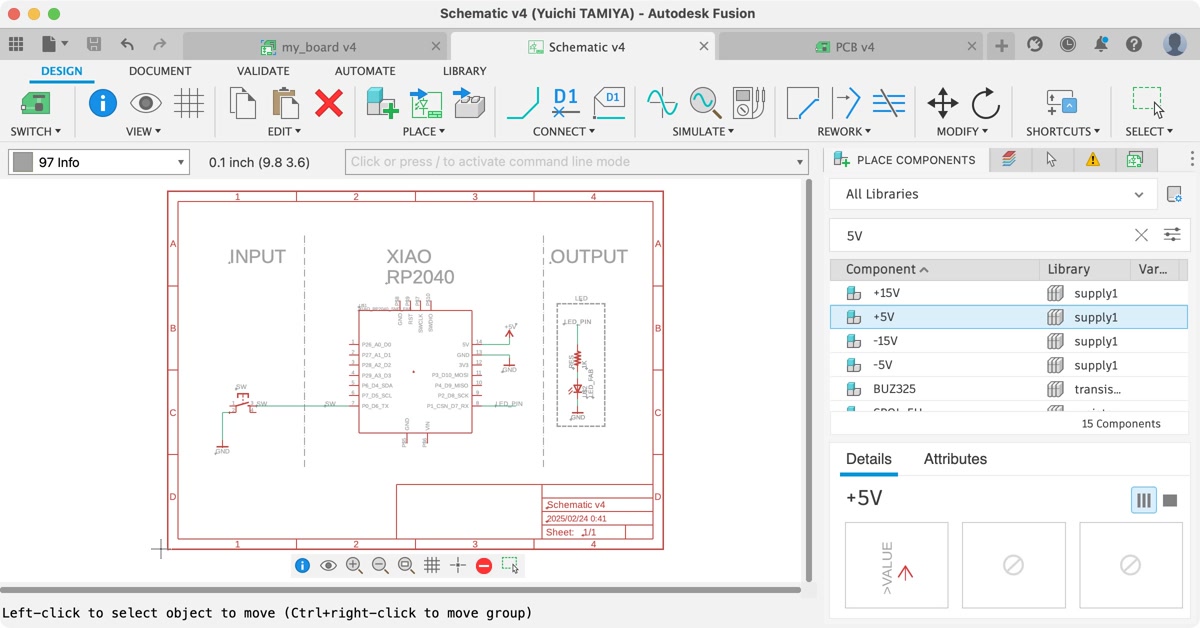

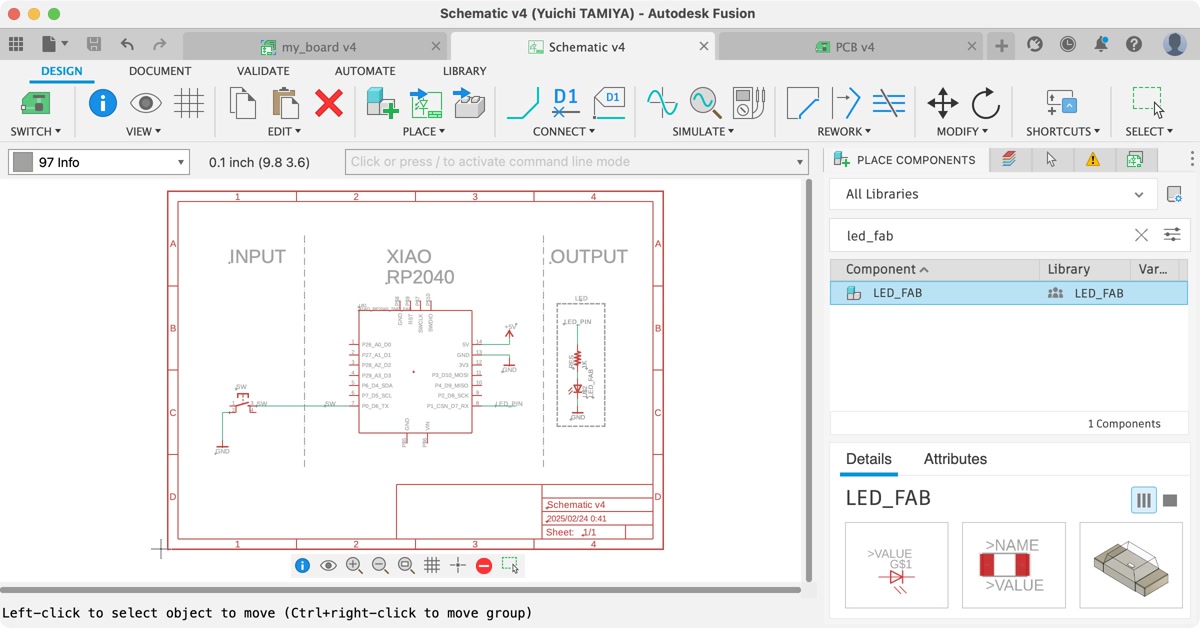

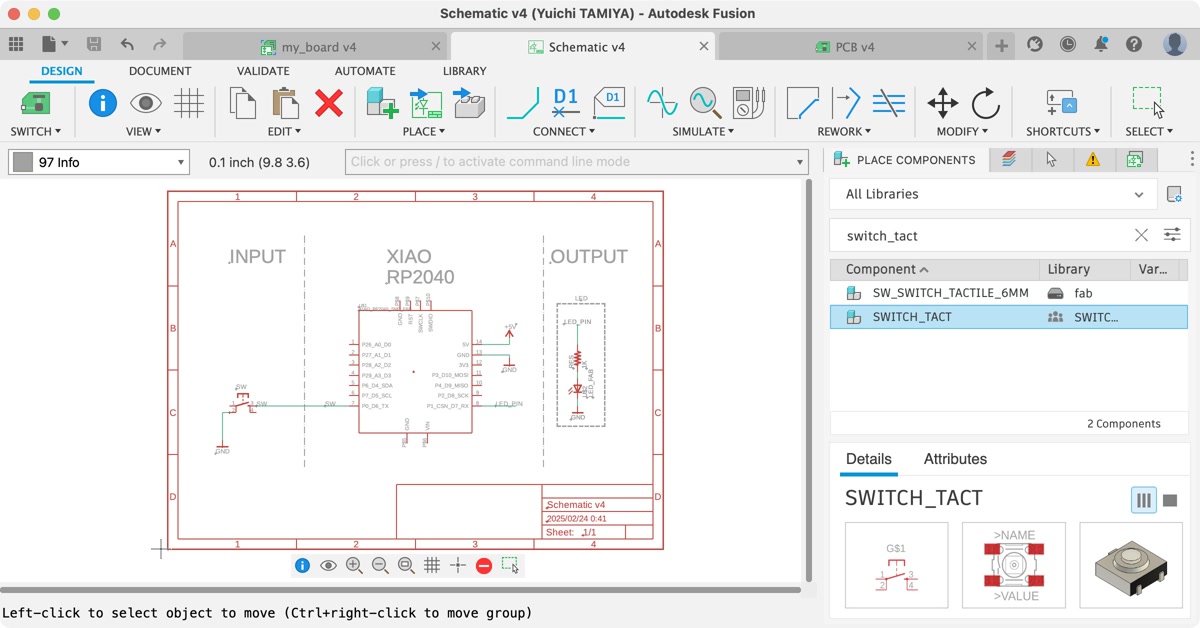

2-1. Place components

XiaoSWLEDRES+5VGNDFrame

2-2. Design

NetNameNew Group(select > New Group)Value(Shotcut key: value)

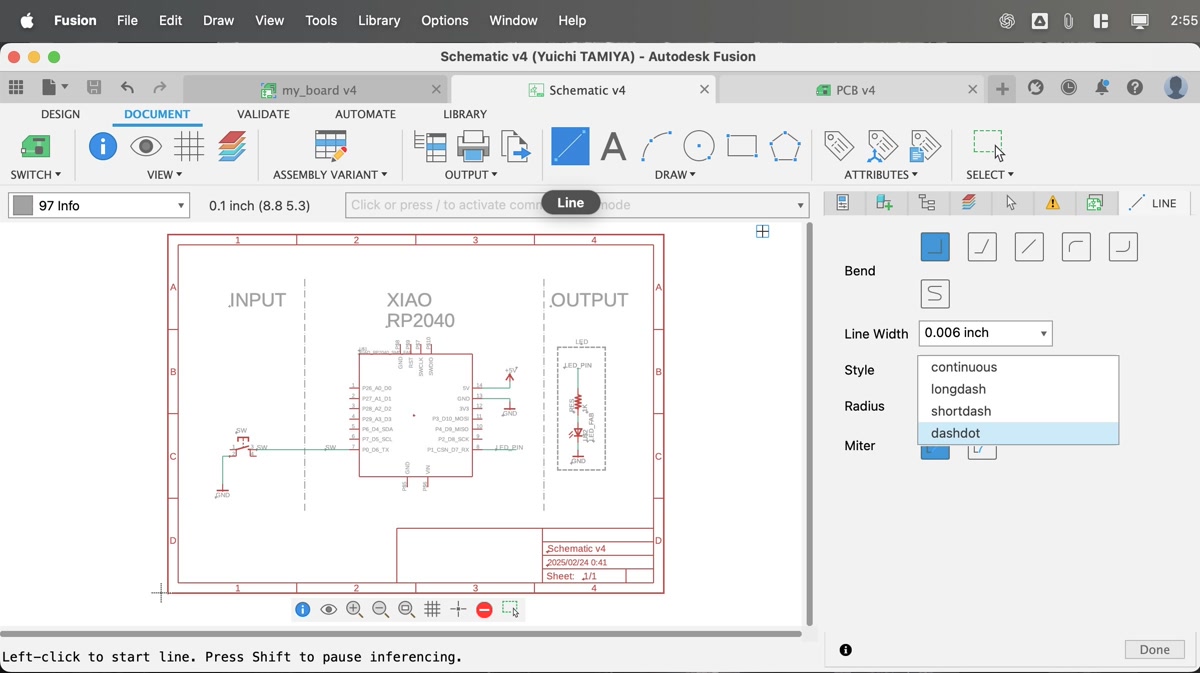

2-3. Document

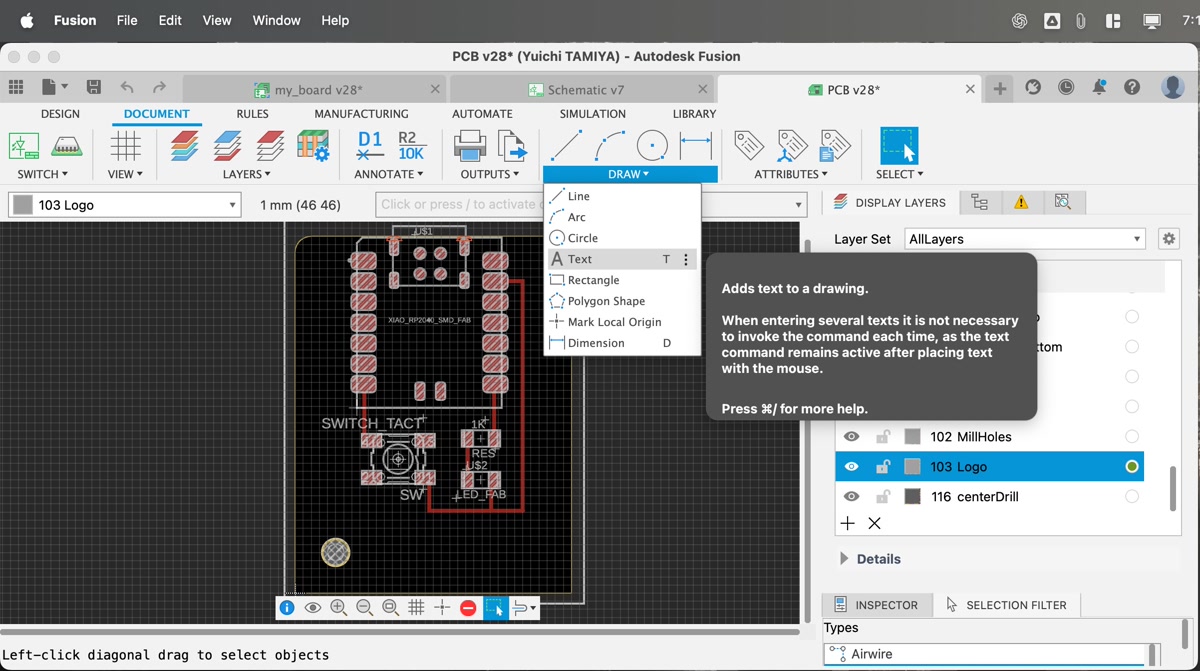

Line DashdotText

3. Design PCB

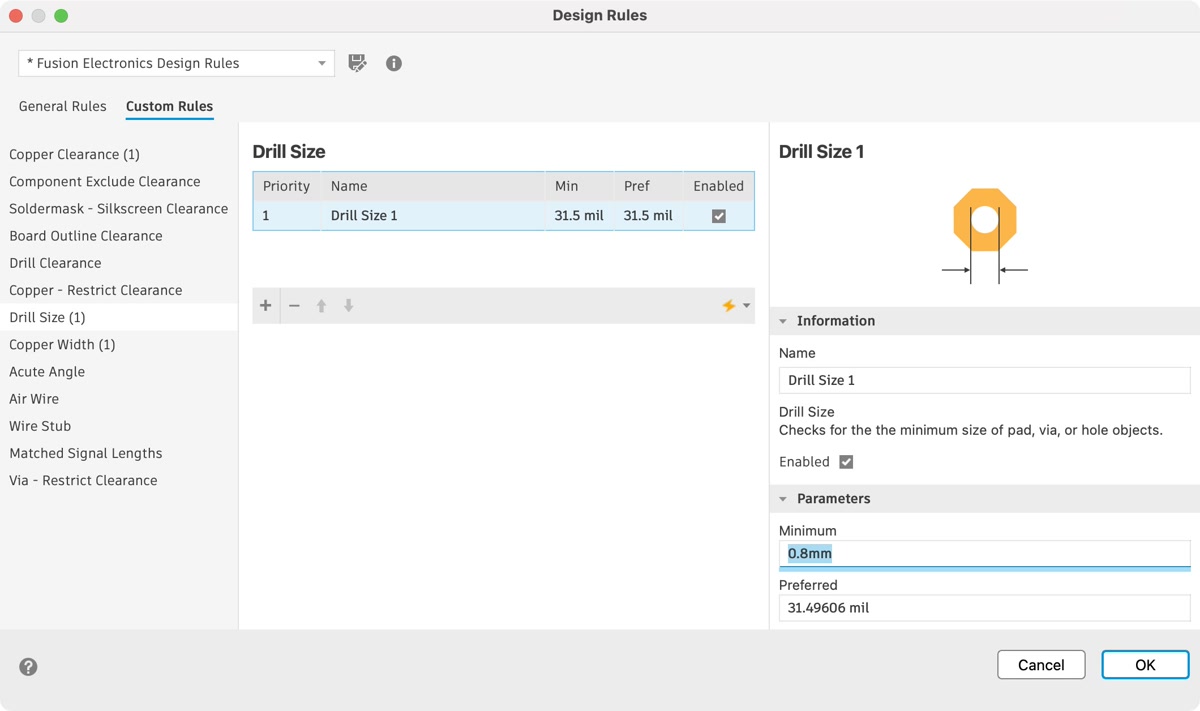

3-1. Design Rule

Rules > Design Rules(DRC)Custom Rules > Copper ClearanceCopper Clearance MinimumDrill SizeCopper Width

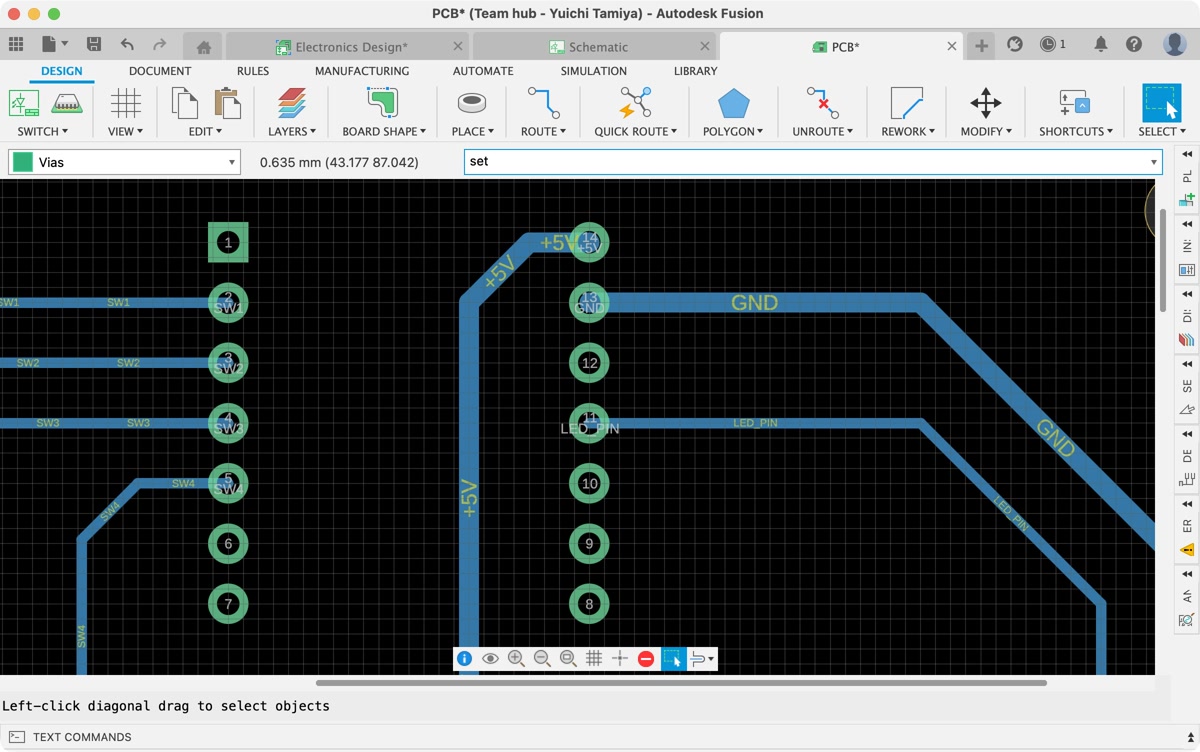

3-2. Route

RouteBack to Schematic > Net to other pads in SwitchDRCDocument > Dimention

4. Design Enclosure in 3D

SketchExtrudeOffset PlaneProject the shape of PCB

5. Push 2D to 3D

Push to 3DPushing to 3DSave as PCB_3Dif necessaryOff the view of Canvases

6. Insert PCB_3D to Enclosure

6-1. Insert PCB_3D to Enclosure and set Initial Position

Insert PCB_3D into EnclosureSelect Origin Point on PCB_3DSelect Targer Point on Sketch in Enclosure

6-2. Edit In Place (Delete Sketch Line from PCB_3D)

Click to “Pencil icon”Edit Sketch “Outline” Select outlineDeleteFinish Sketch

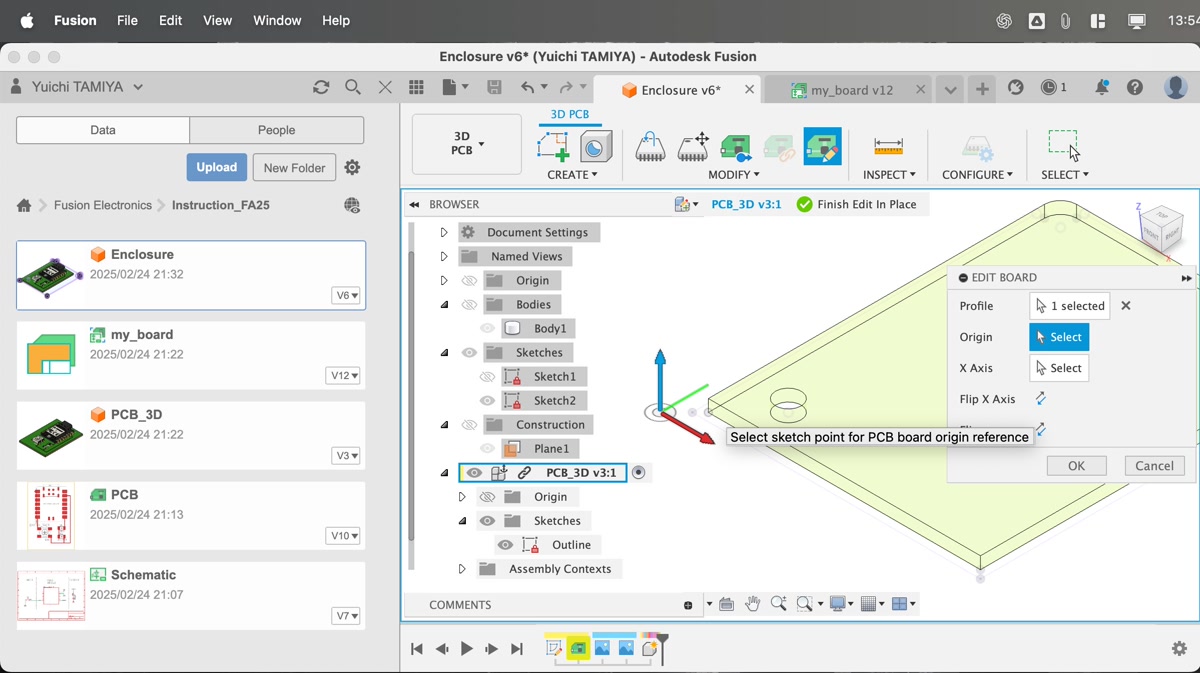

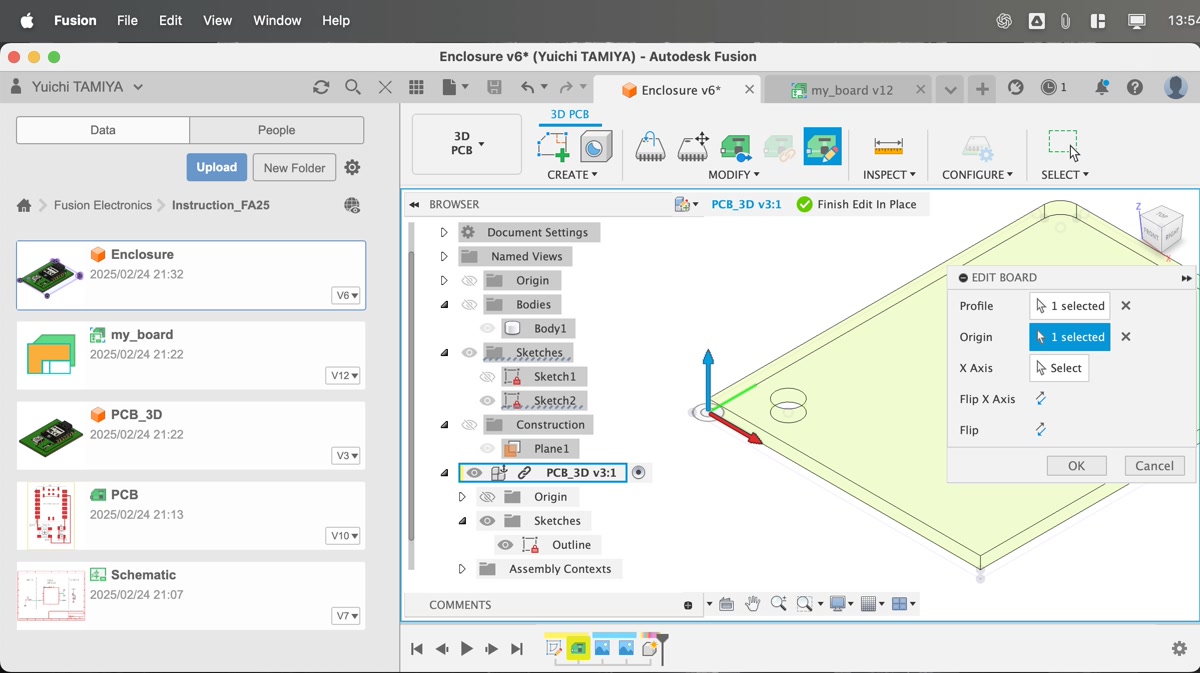

6-3. Edit In Place (Edit Board)

Edit BoardMissing old profilesSelect new profileSelect OriginSet new OriginSelect and set X AxisOK to finishFinish Edit In Place

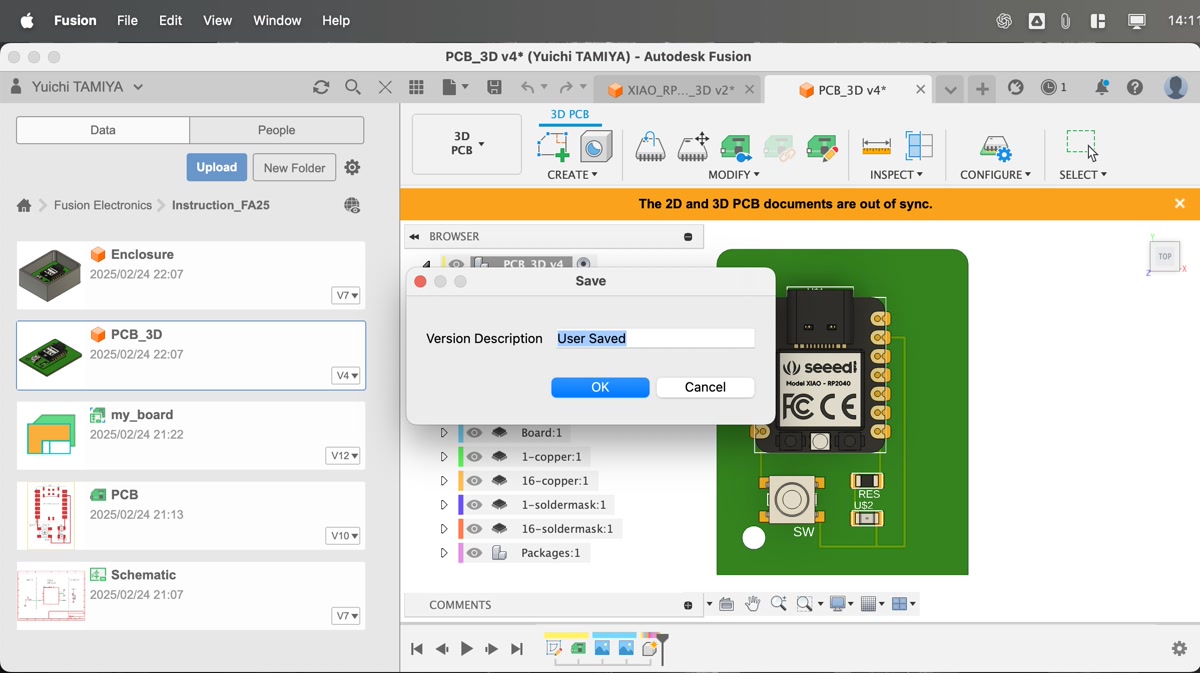

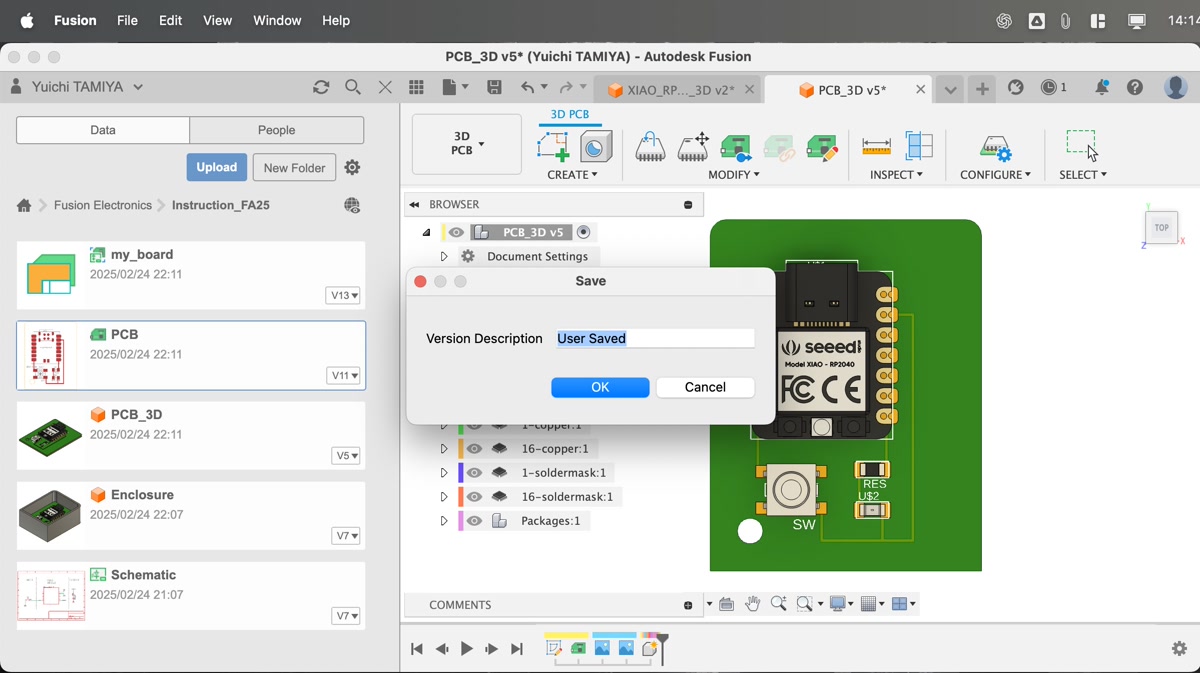

6-4. Save and Sync

SaveSaving 2 designsPush to 2D PCBSavePush to 3D PCBPushingPushedSaveFind Old FileClick “Alert icon”Updated

File name: Enclosure

File name: Enclosure

File name: PCB_3D (latest version)

File name: PCB_3D (latest version)

File name: PCB

File name: PCB

File name: PCB_3D (New File)

File name: PCB_3D (New File)

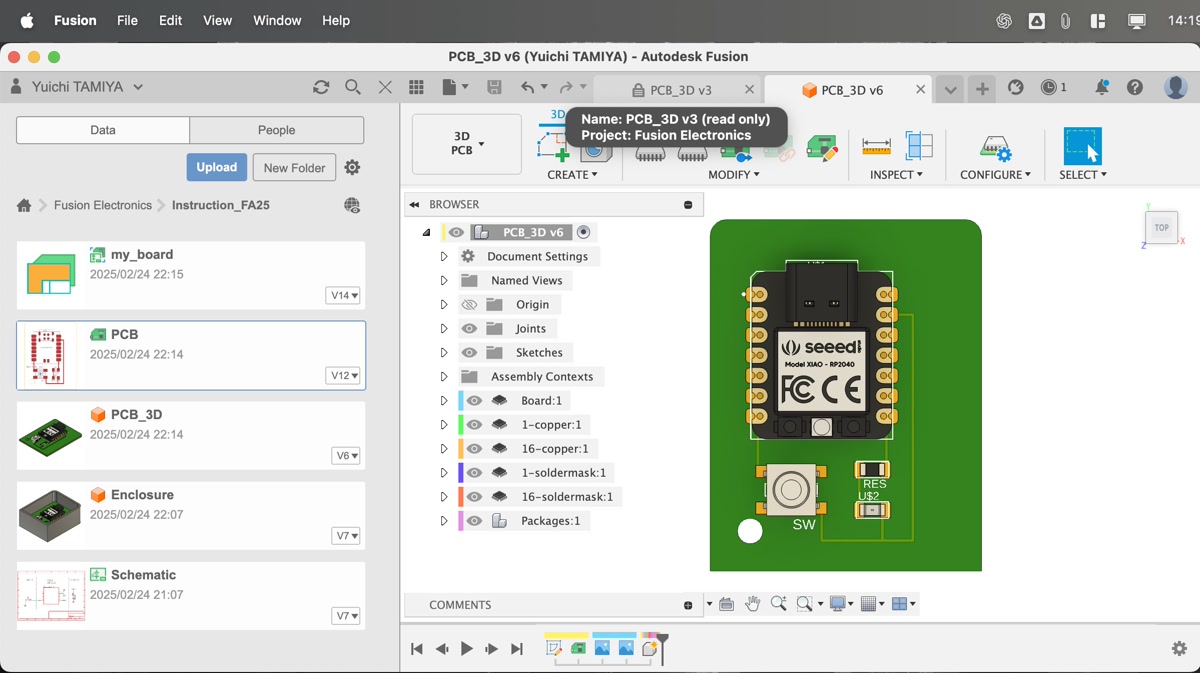

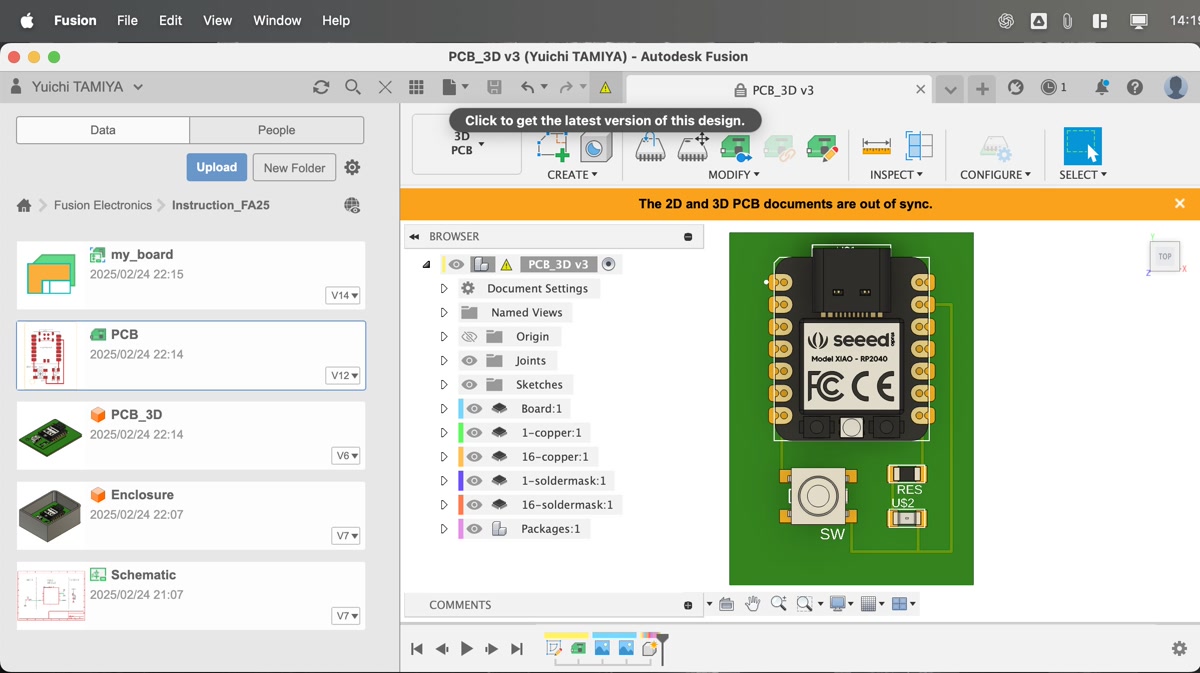

File name: PCB_3D (Old Version)

There are two different versions of PCB_3D files. “PCB_3D v3” and “PCB_3D v6”

File name: PCB_3D (Old Version)

File name: PCB_3D (Updated and marged Version)

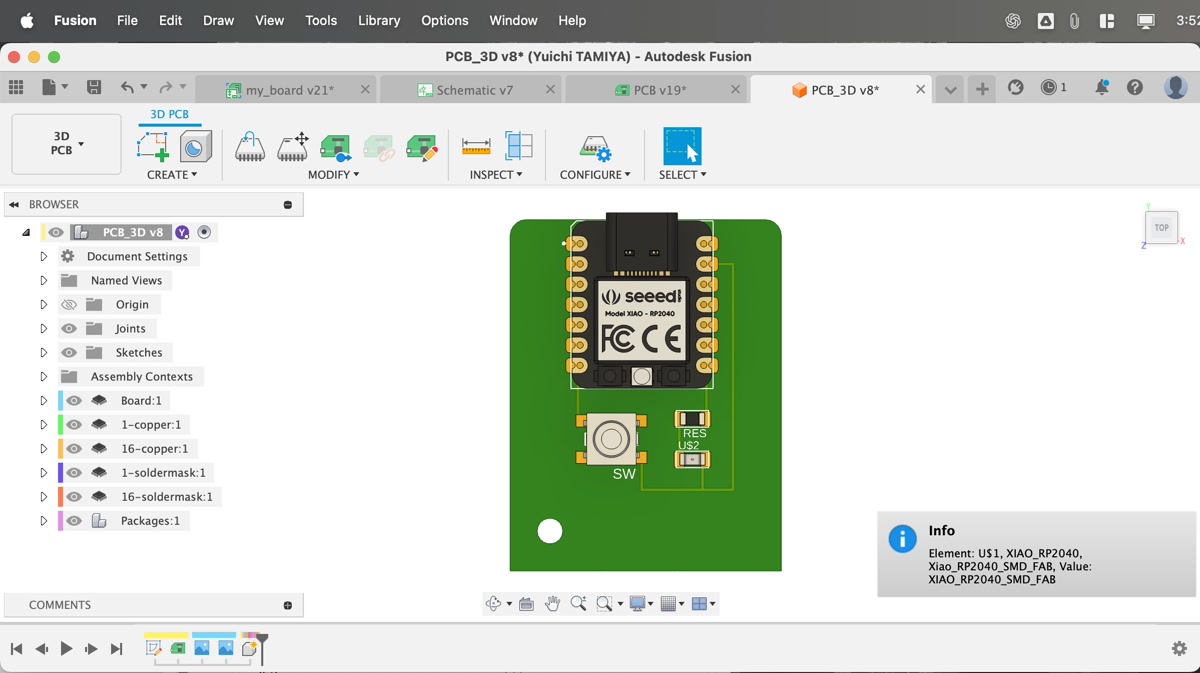

“PCB_3D v3” is updated and marged as “PCB_3D v6”. Only one “PCB_3D” here

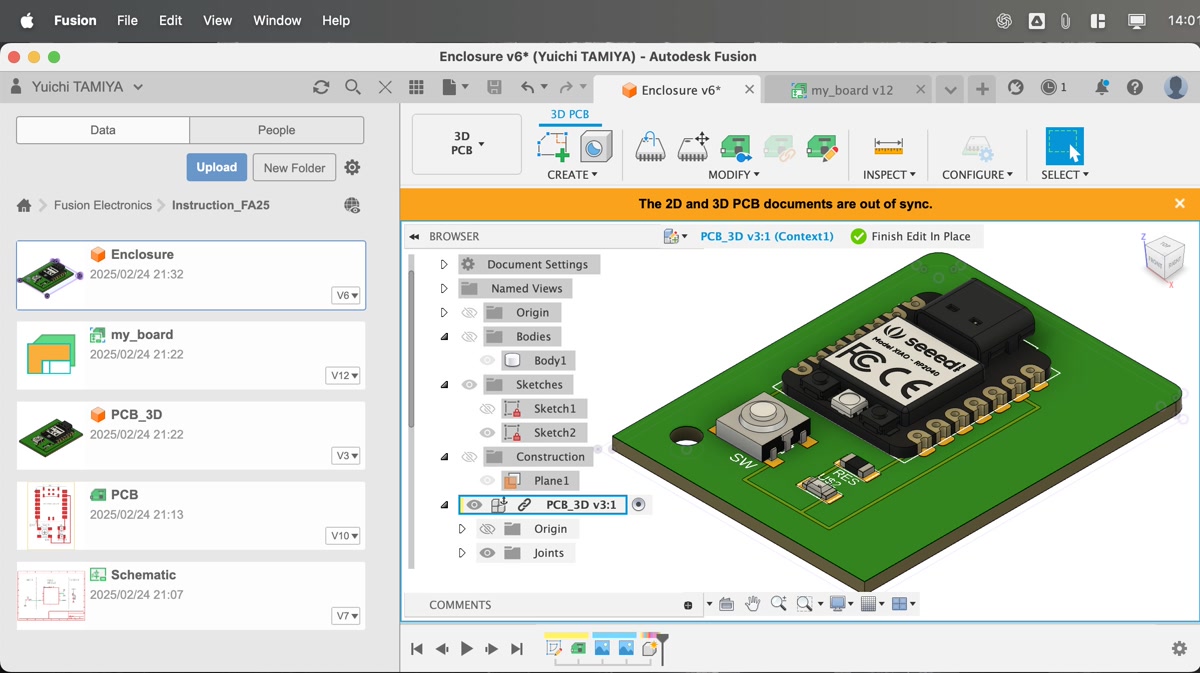

7. Make change

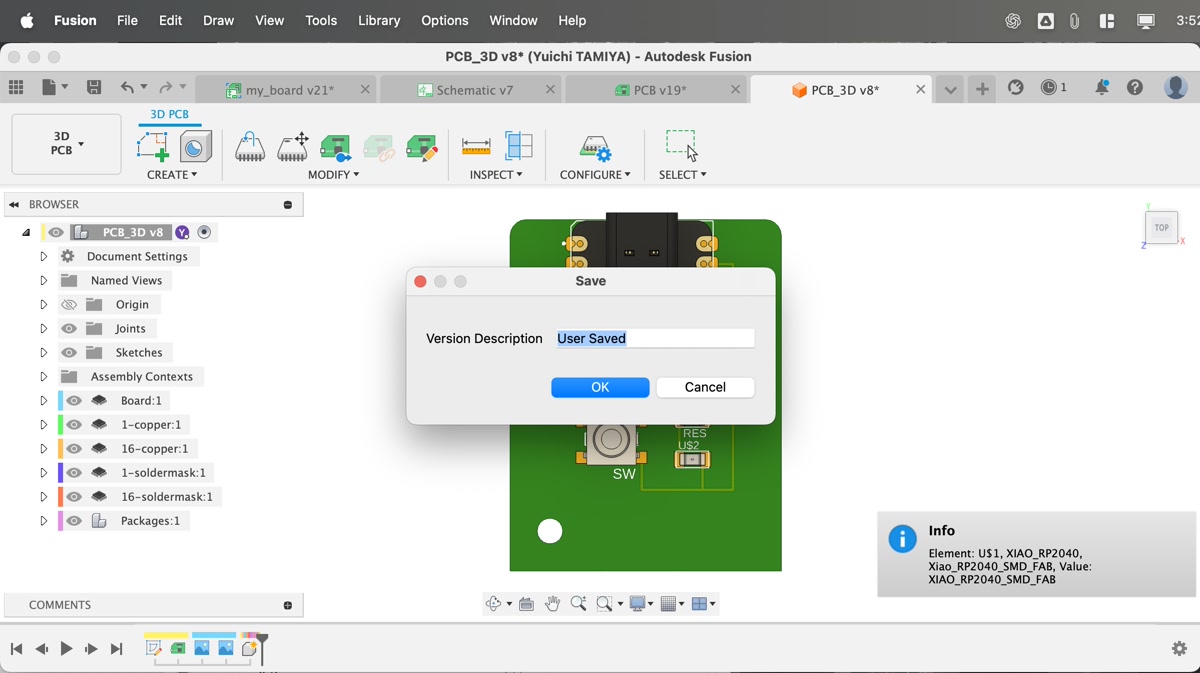

Select componentsMovedSavePush to 3D PCBPushingUpdatedSave“Alert” of out of dateUpdatedSave

8. Preparing for Milling

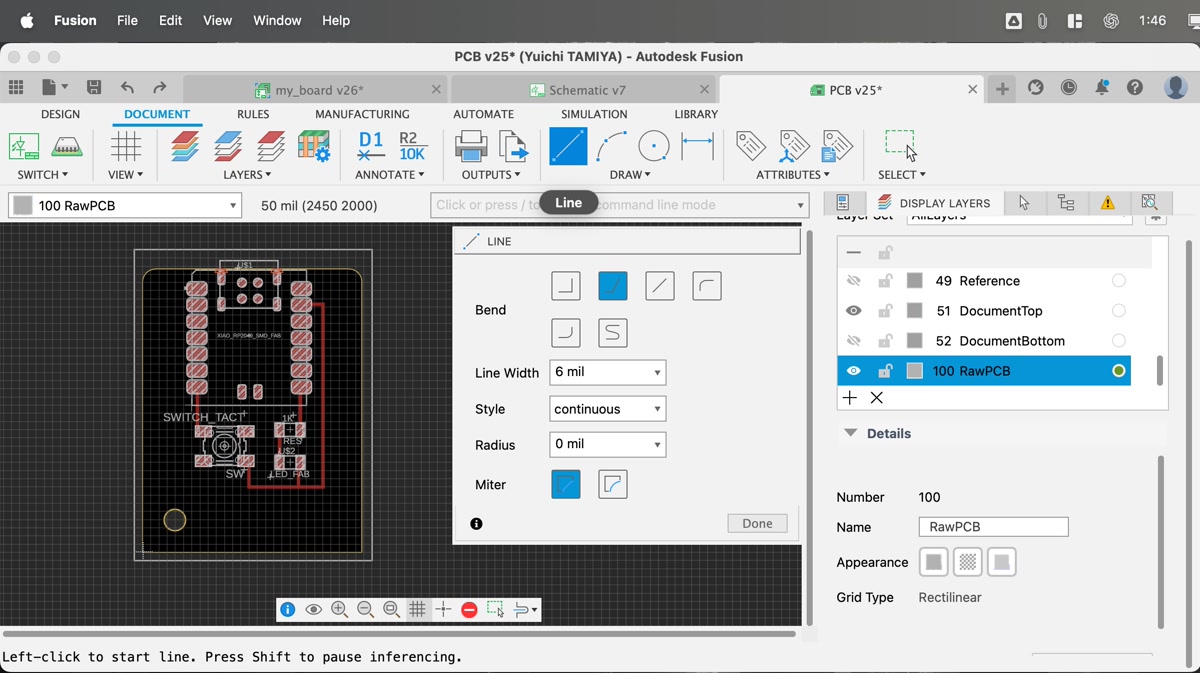

8.1. Draw RawPCB shape on New Layer

New layer RawPCBLineMeasure (Dimension > 1/32”(0.8mm))

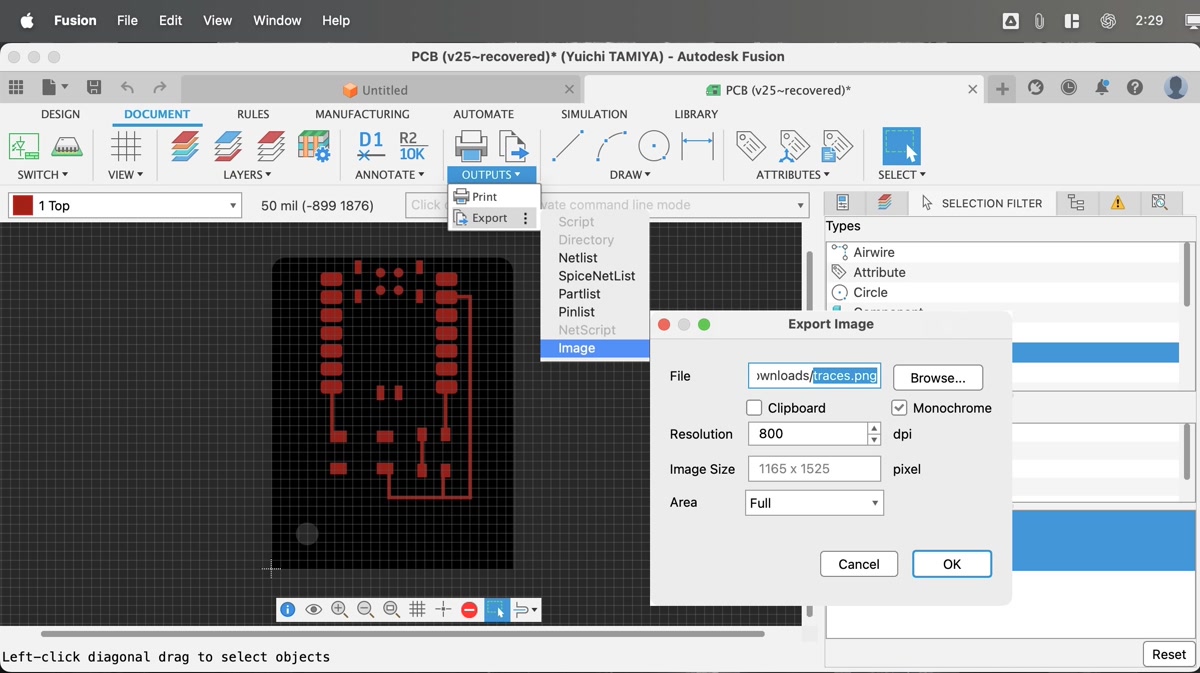

8.2. Export traces.png

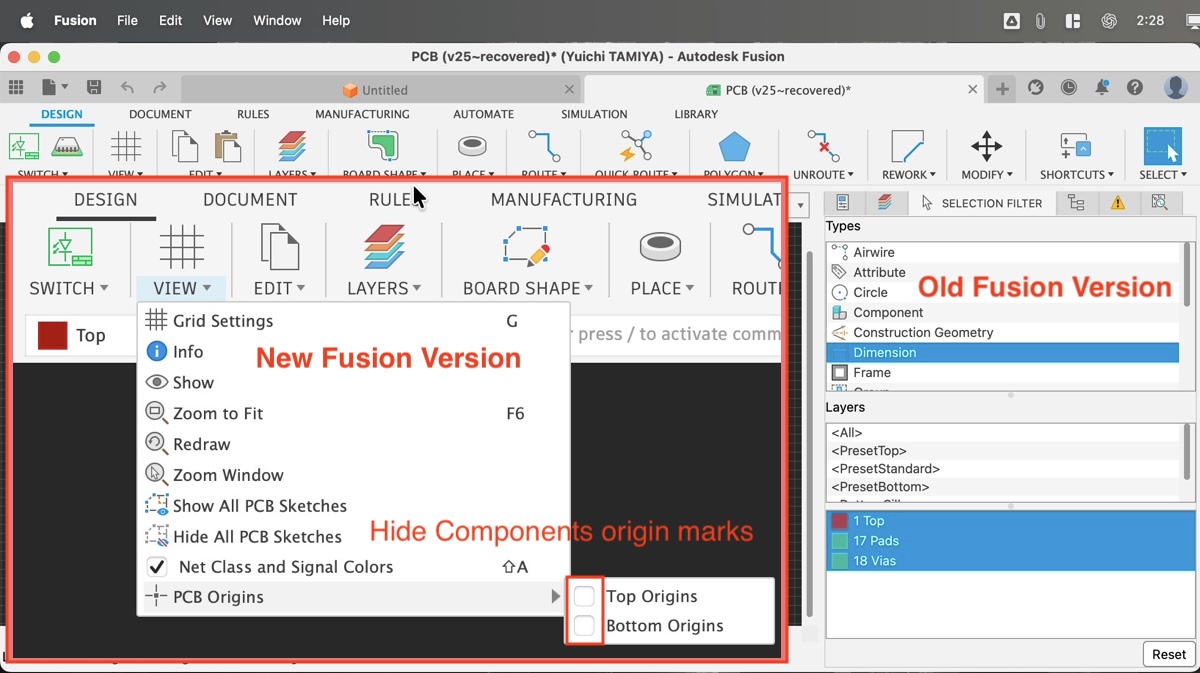

Show off all layersShow trace layersSelection TypeSelect any other TypeExporttrace.png

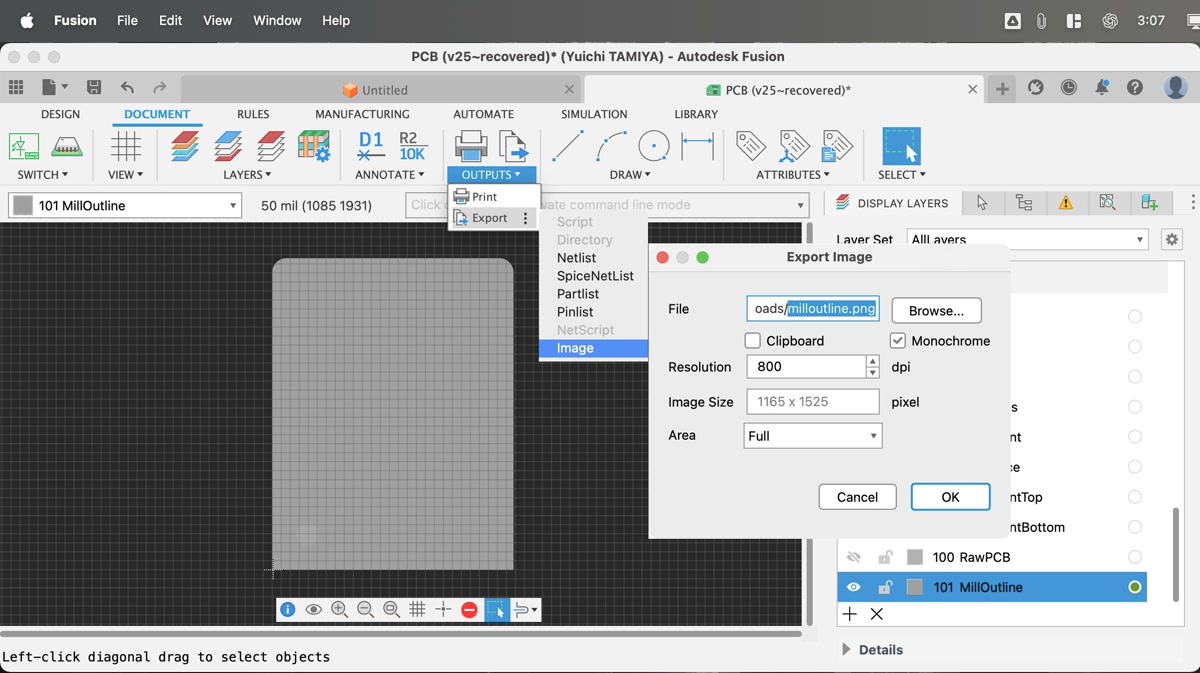

8.3. Export outline.png

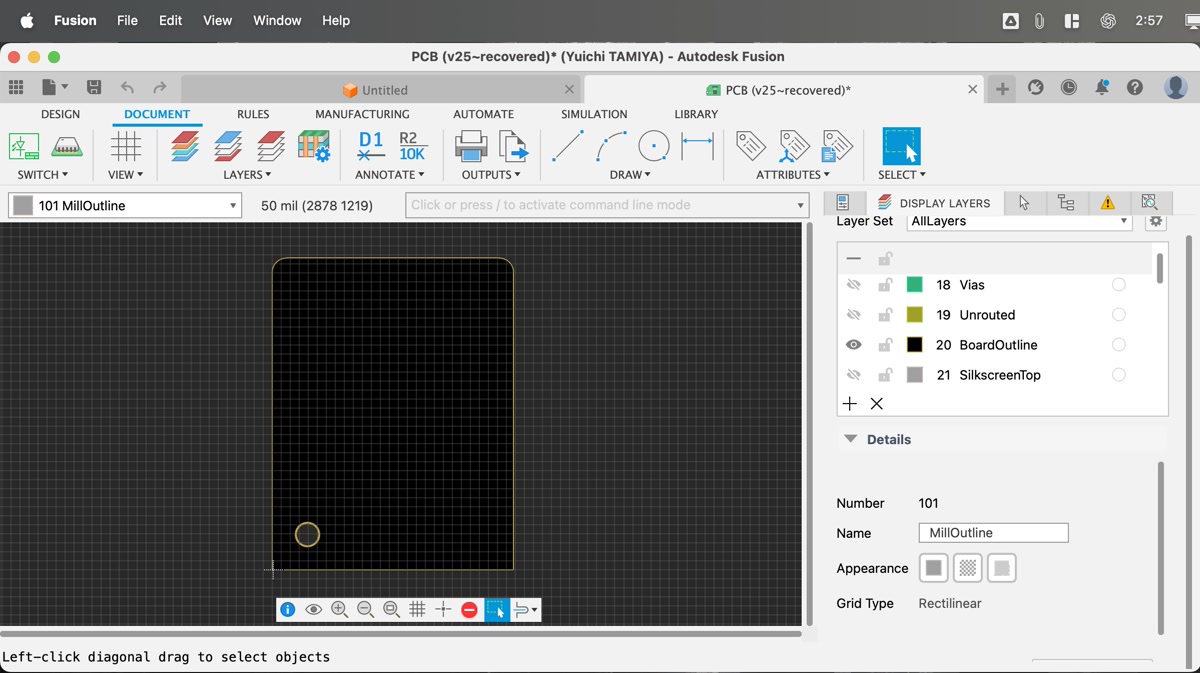

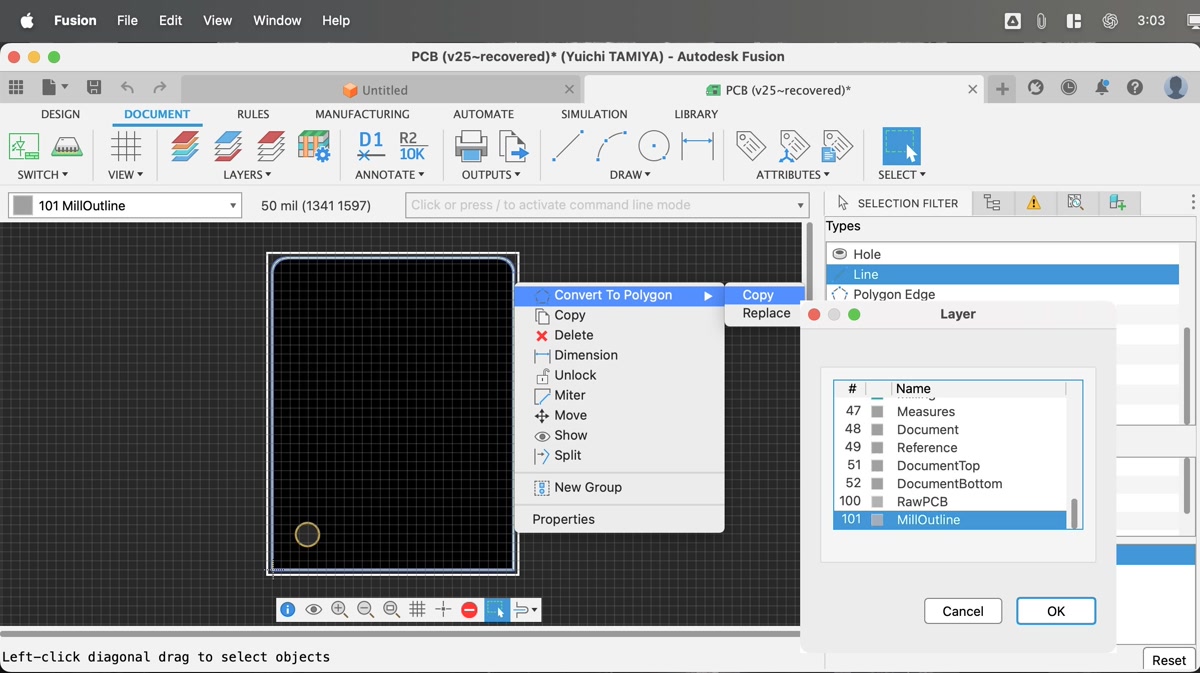

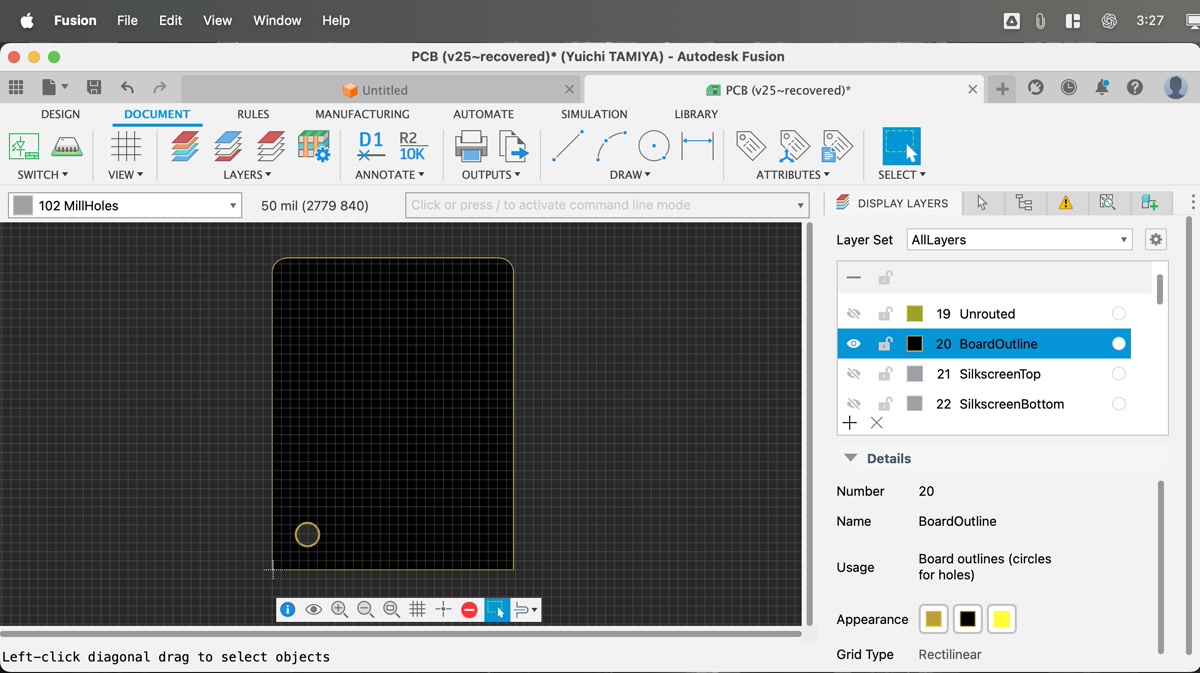

New layer MillOutlineShow only 20_BoardOutline LayerSelection Type: LineSelect all(Ctl+A)Convert To PolygonShow only MillOutline LayerExportmilloutline.png

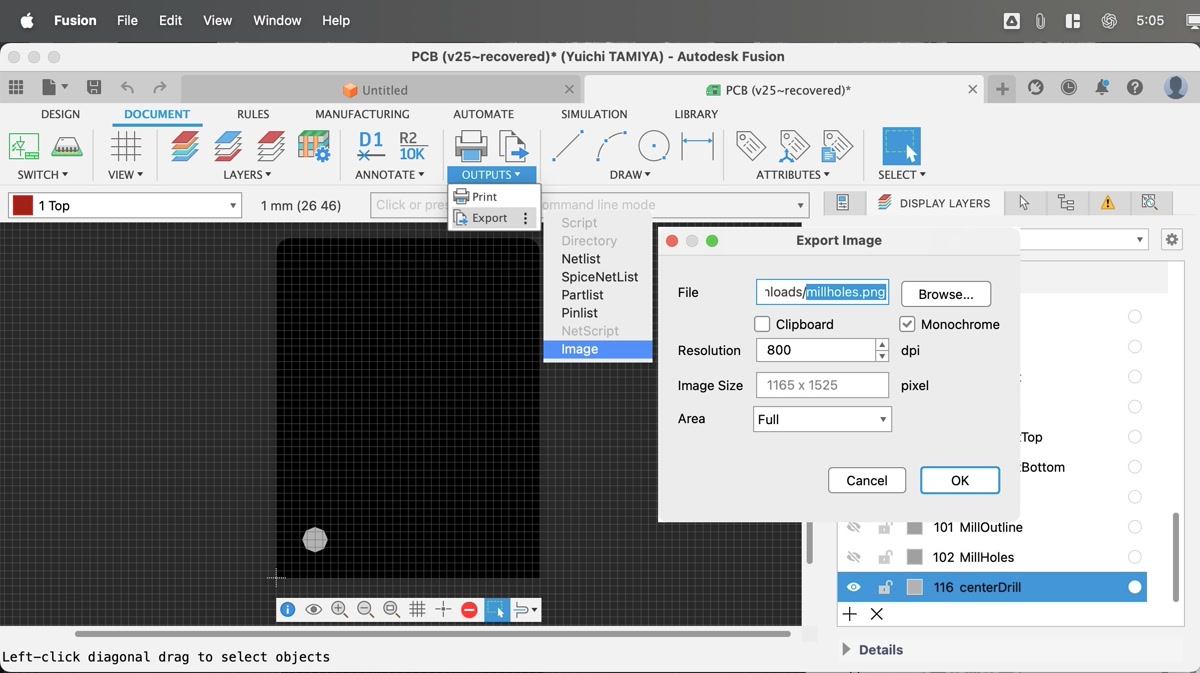

8.4. Export millholes.png

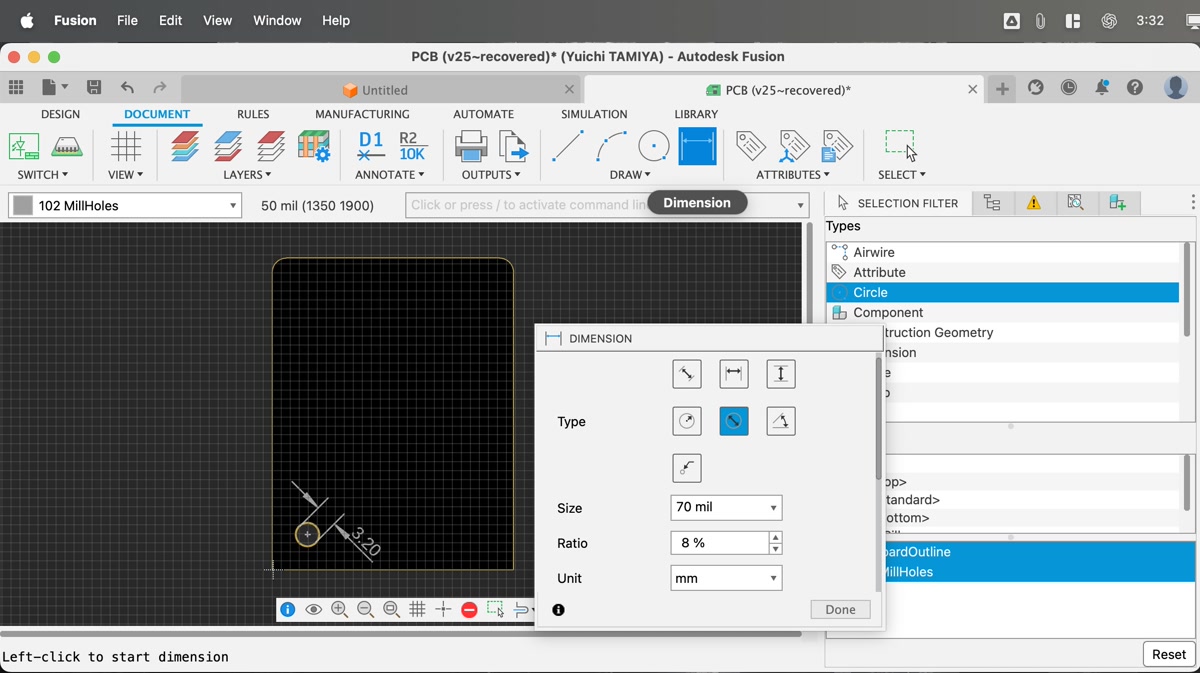

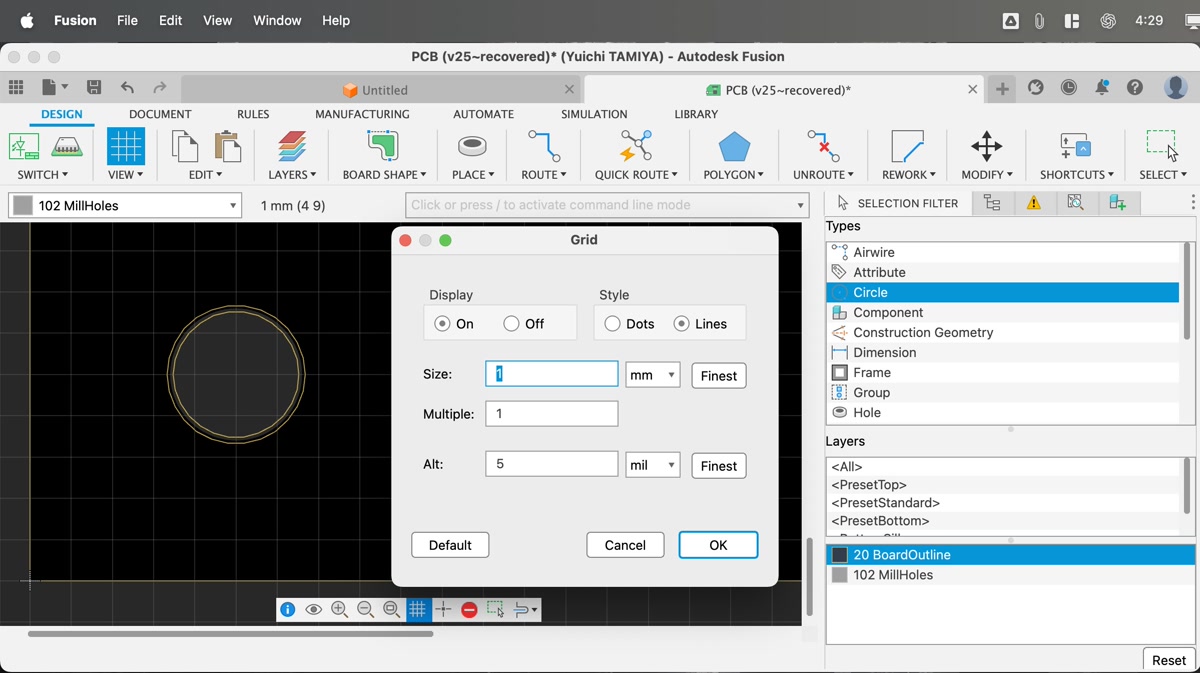

New layer MillHolesShow only 20_BoardOutline LayerSelection Type: CircleSelect all(Ctl+A)Measure (Diameter)Chenge_Drid Size:1mmHole Drill = DiameterPlace hole on CircleULP > drill-aid > “0”116 centerDrillShow only centreDrill LayerExportmillholes.png

Set up Shortcuts

Drill Holes making

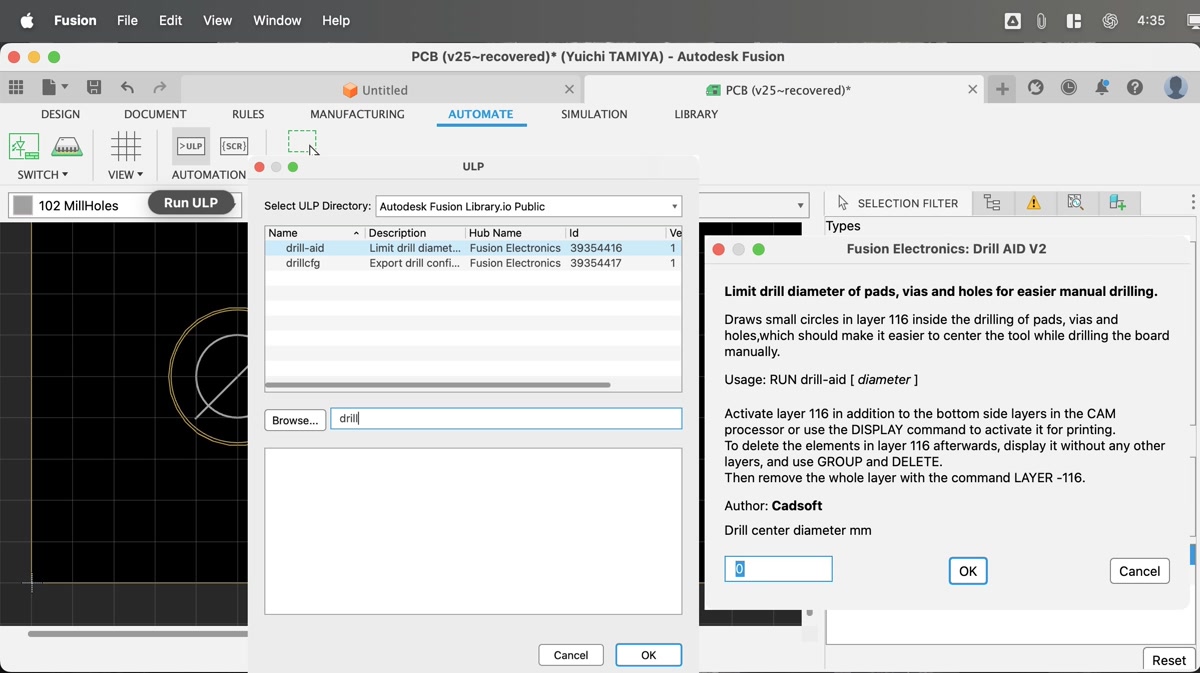

ULP: drill-aid
Command:

SET FILL_LAYER 116 1;
run drill-aid 0

Set up Shortcuts:
Shortcuts -> SET FILL_LAYER 116 1;run drill-aid 0 -> press F12 to assign the key

8.5. Generate G-Code from Mods

Mods

G-Code > mill 2D PCBTracesOutlineHoles (invert)

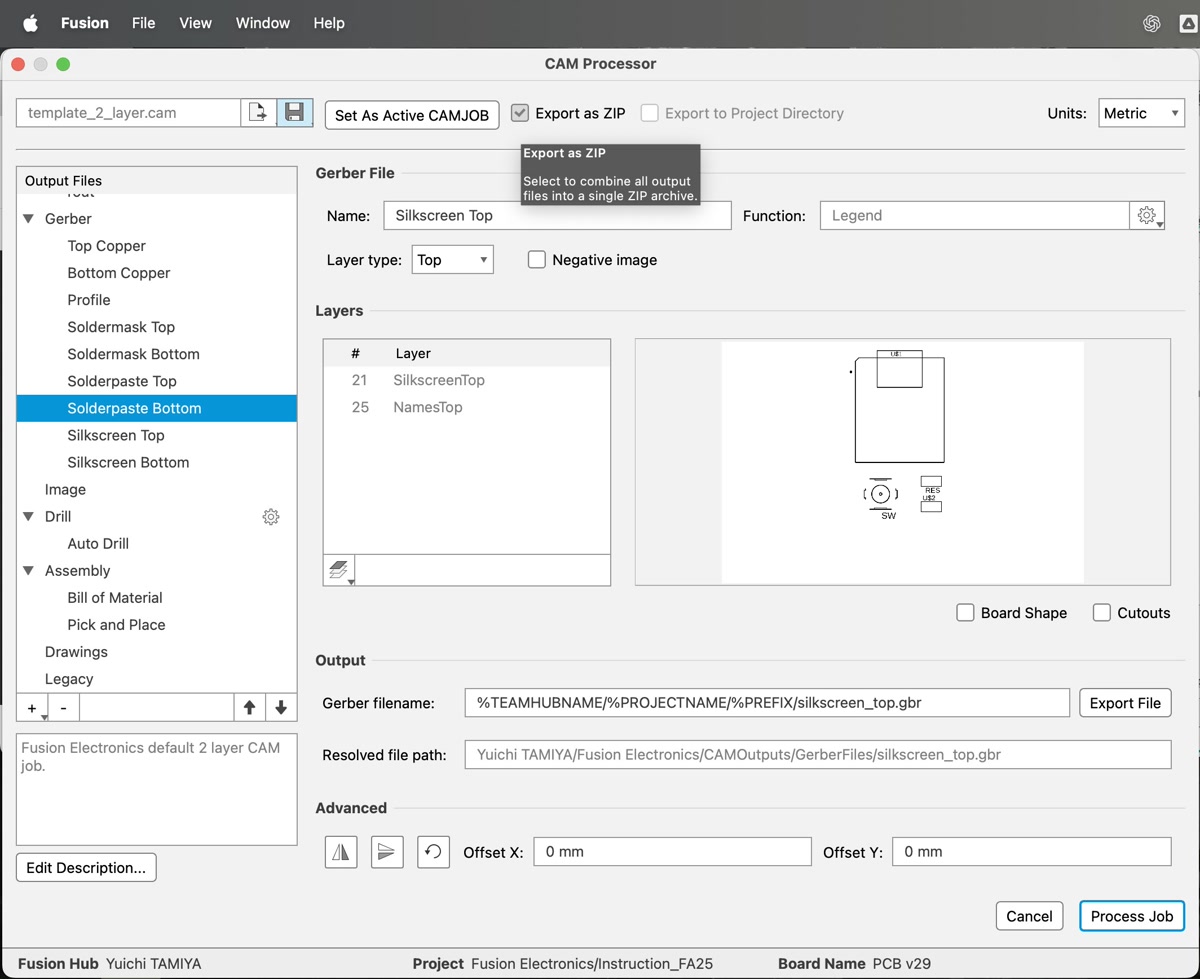

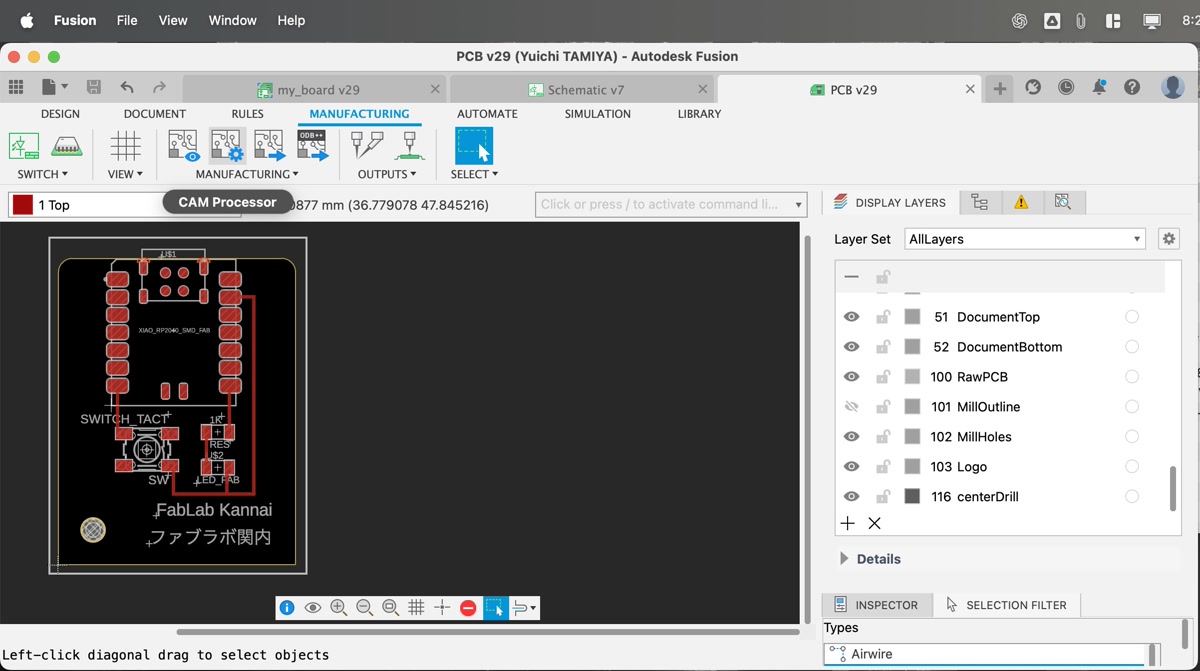

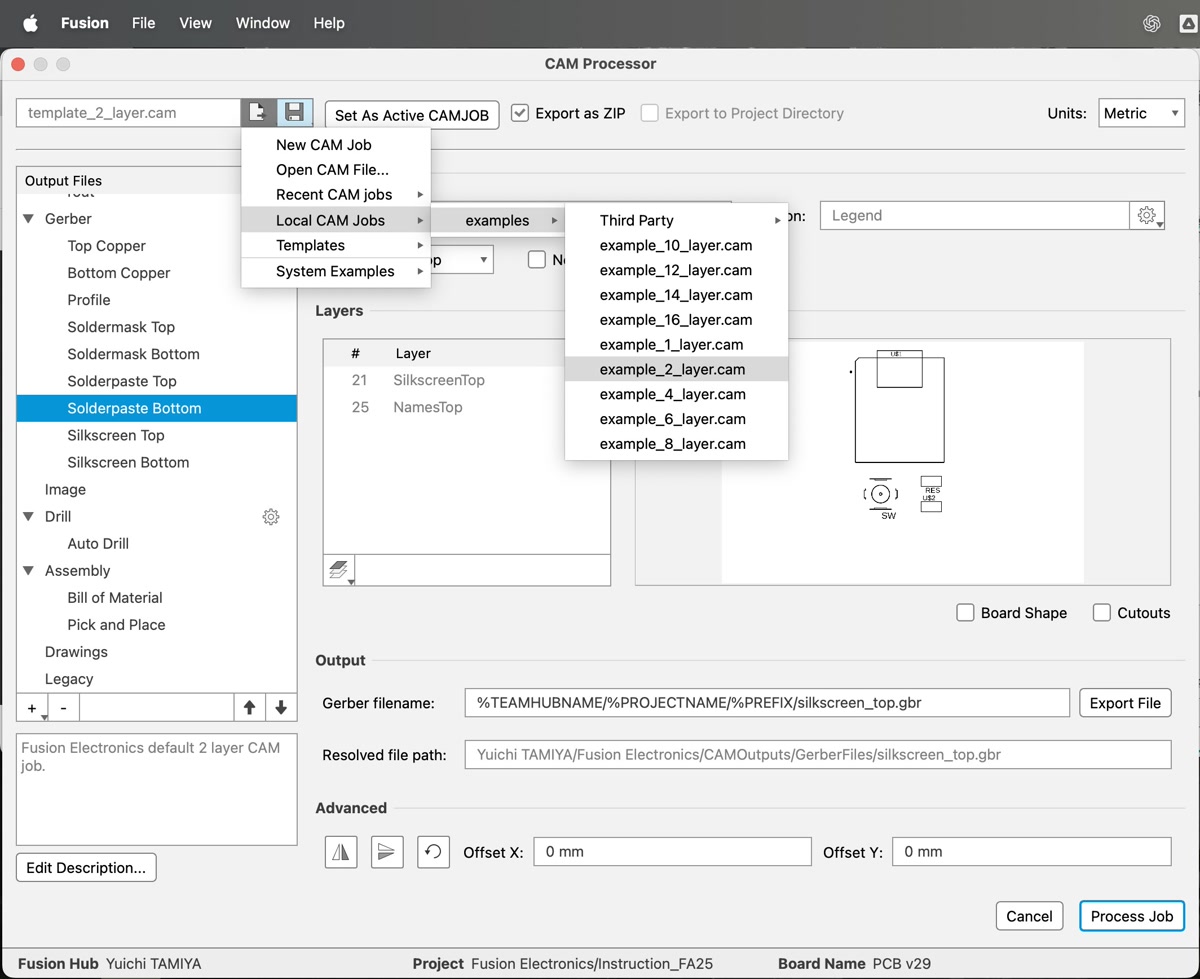

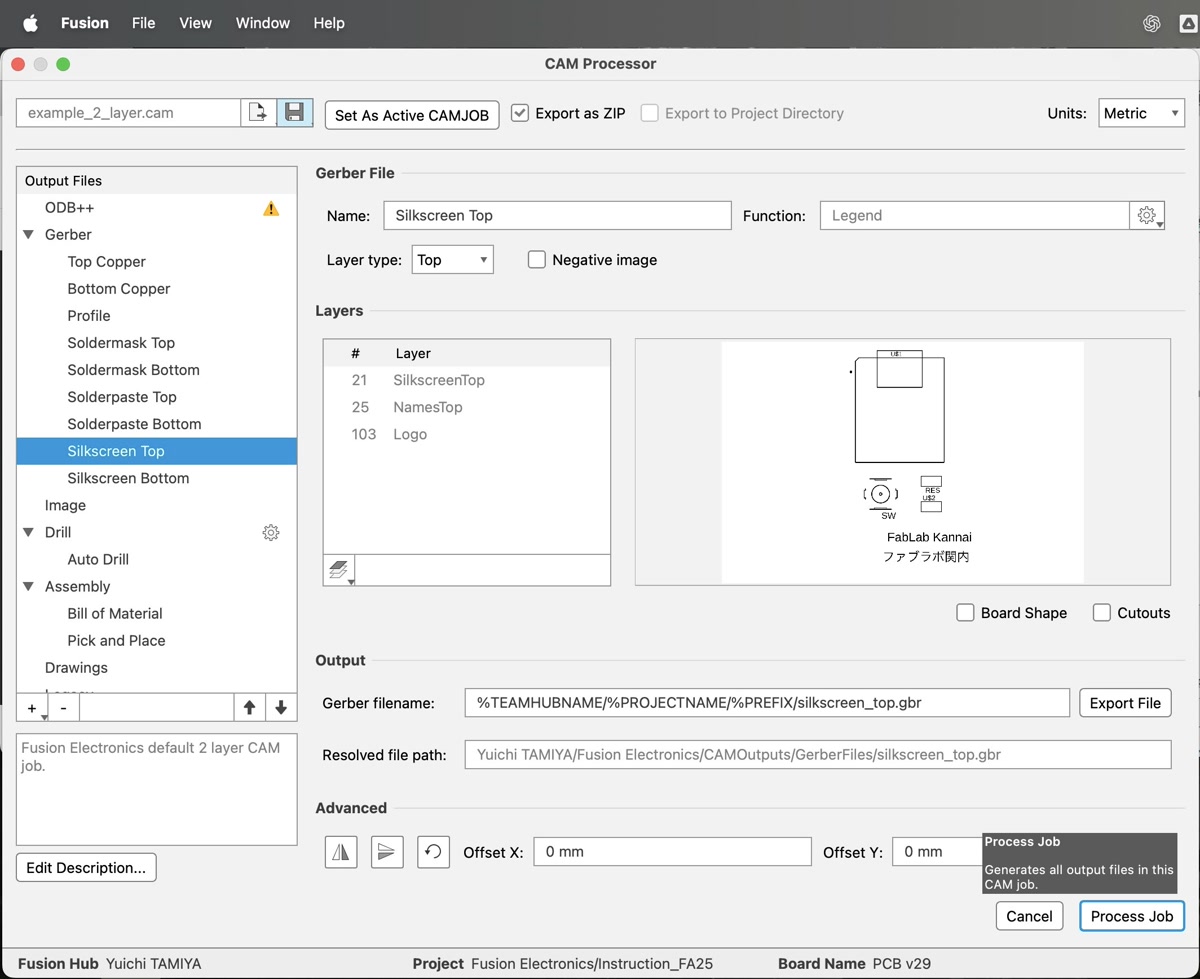

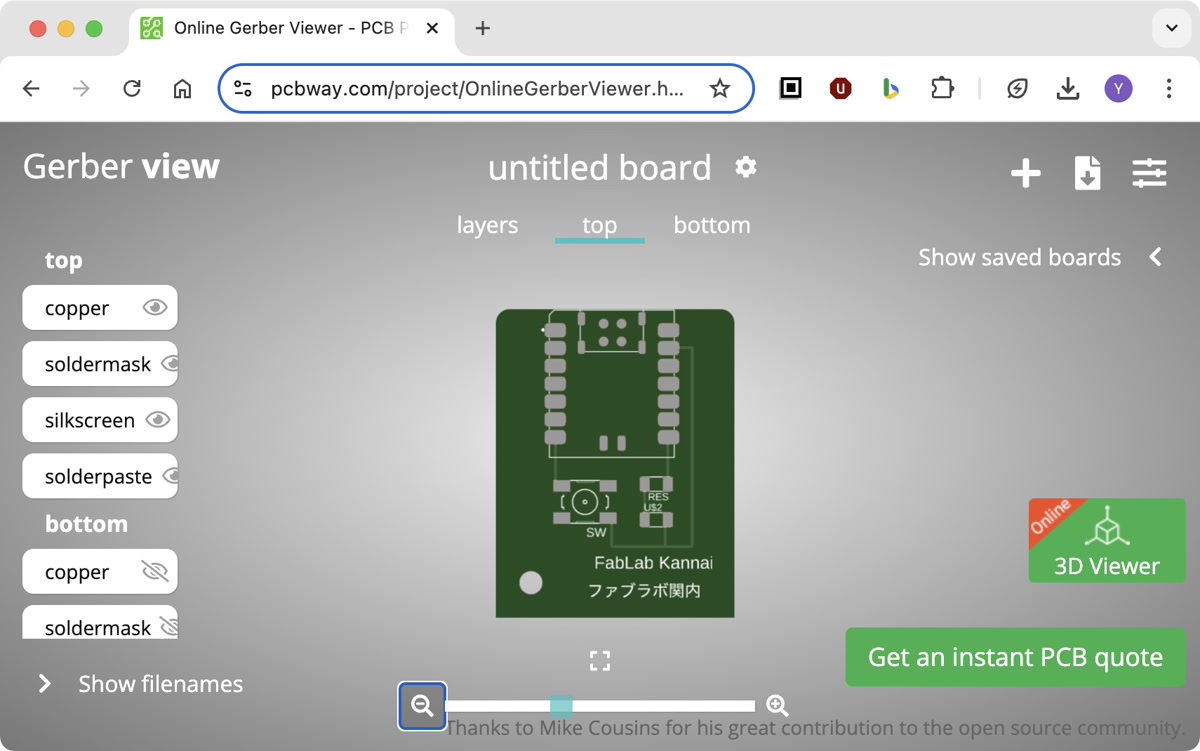

Preparing for order to a board house
