KiCad FabLib

Not a full workshop, but if it is not here, it did not happen.

The KiCad Fab electronics library has experienced (and is experiencing) a facelift.

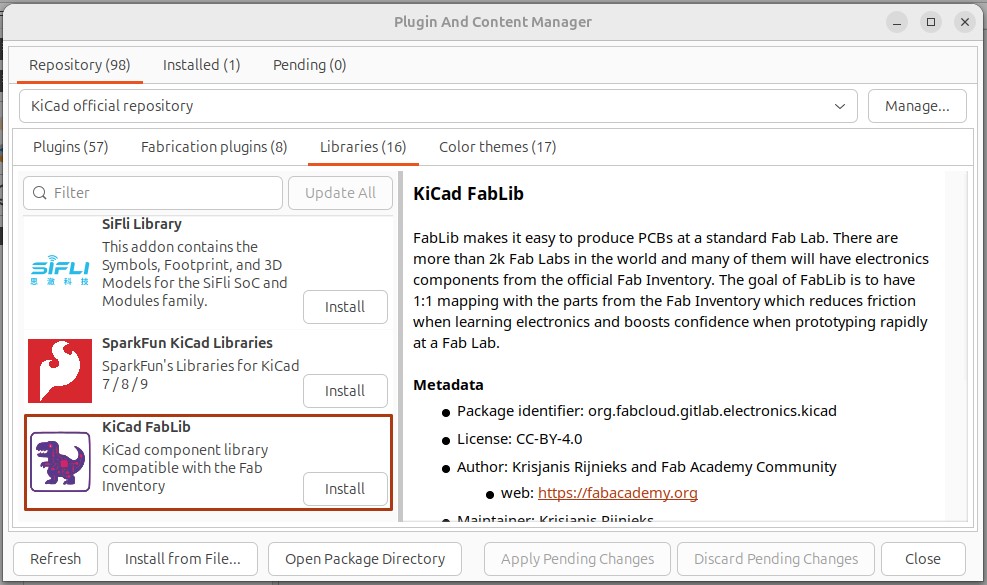

1. One can now intall it via official KiCad Addon Manager
2. It has a release system based on semantic versioning

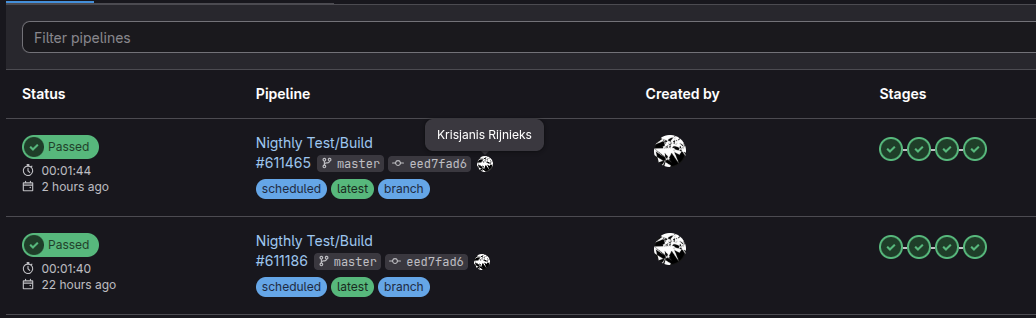

3. It has nighly build system so one can always go for the absolute latest version.

Access GitLab Repository

Contribute!

Work is ongoing towards ways of seeing what is still missing.

• Scripts that show which symbols are missing footprints

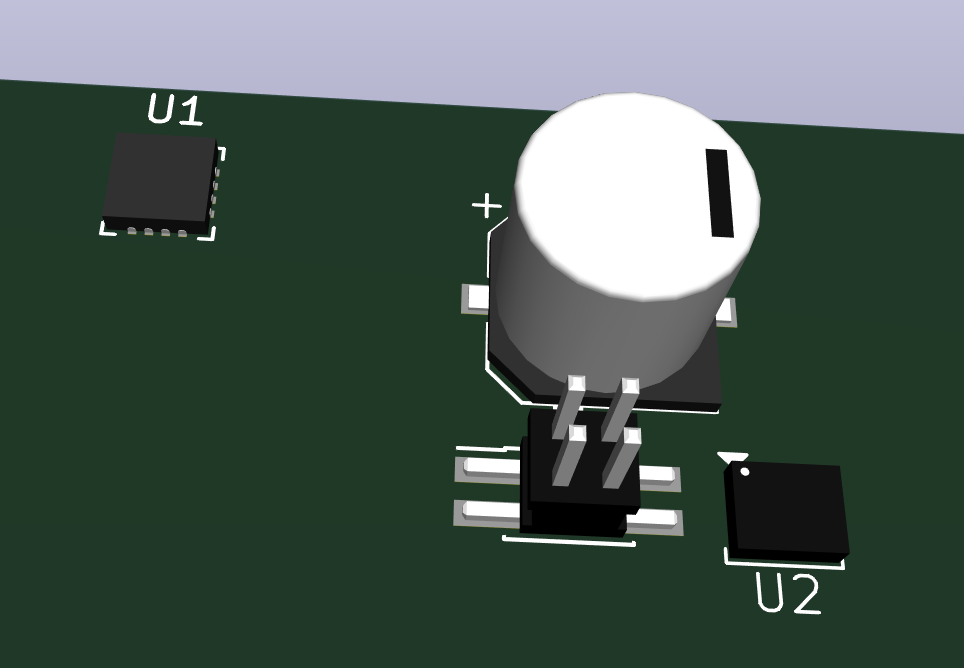

• Scripts that show which footprints are missing 3D models
• Work towards better structure and naming scheme

Please get in touch via project Issues or Mattermost if you want to contribute a 3D model or two. They have to be made in FreeCAD so that anybody could update them later if needed.

Future

Some of the future steps include the following.

• Splitting library into packages, such as the following.
• Resistor_1206 with resistors that are named according to value
  • 10k
  • 49.9k
  • 100k
  • etc...
• Resistor_0603
  • ...
• Input
  • IMU_ST_LSM6DSV16XTR
  • Accel_Analog_ADXL343
  • etc...
• Output
  • ...
• Hello Worlds build into library as Design Blocks or a Design Blocks
• ...
